DESCRIPTION :

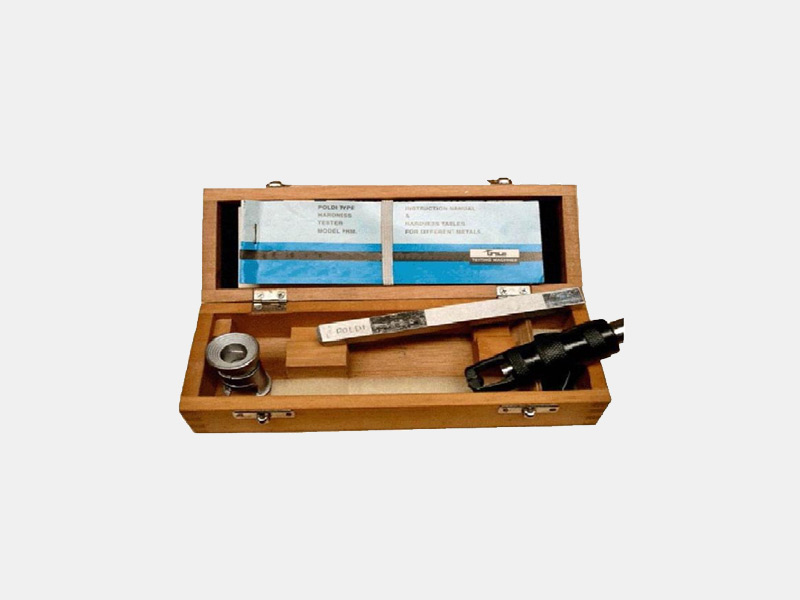

Poldi hardness test is a dynamic hardness test and can be used at any stage of processing of metals. The instrument consists of a hardened steel ball of 10mm diameter fixed to a hollow cylindrical casing; a movable plunger is fixed rigidly in the casing by means of spring. A standard test bar is inserted in the gap provided between the plunger bottom and the steel ball. The test bar is hardened for a predetermined value and is tapered for easy insertion.
RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To determine the hardness of a given sample by using poldi hardness tester.
TECHNICAL DESCRIPTION :
| Material | ALLOY STEEL EN-8 OR EN-9 |
| Dia | 30 mm |
| Length | 85 mm |
| TUNGSTEN CARBIDE BALL | 10mm |
SPACE REQUIRED :
0.3 m. ( L) x 0.3 m (W) X0.3 m (H).
WEIGHT : @ 3 Kg
