RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the characteristics of Drying.
- To calculate the rate of drying.

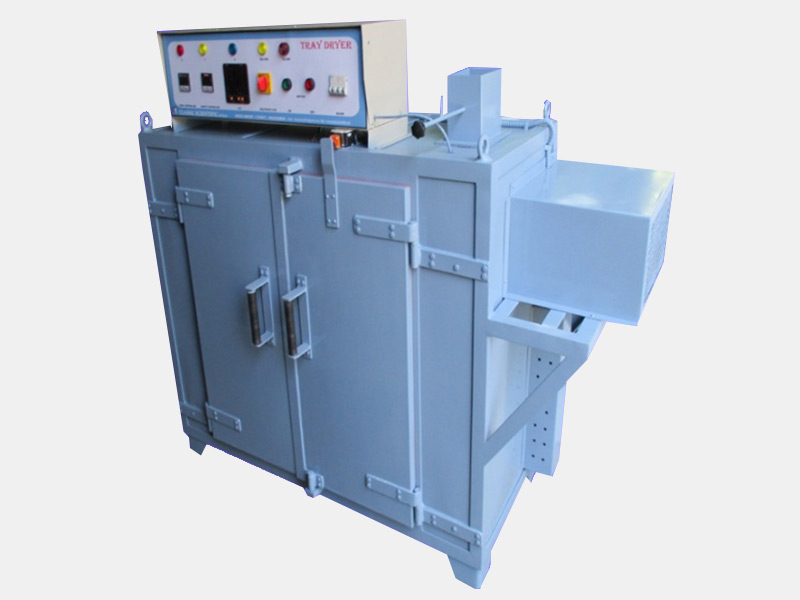

Experimental Setup
- Capacity : 12 Trays / 70 to 80 kg
- Tray Size : 16” W X 32” L X 1 ¼” H
- Working Size : 34” H X 17” D X 33” W
- Overall Size : 40” H X 23” D X 52” W + Right Side Motor Stand.
- Construction : Double Walled .
- Temperature : 50 To 200 Deg C.
- Heating : Electric Heating.
- Heaters : S.S. Tubular Air Heaters On Both Sides Of The Dryer
- Heating Rating : 6 K.W.
- Hot Air Circulation : Motorized Air Circulation From Side.
- Exhaust : Adjustable Exhaust At Top.
- Temp. Control : Microprocessor based PID Temp. Controller.
- Supply : 3 Phase , 440 Volts Ac.
SERVICE REQUIRED:
- Water Supply: @ 2 lpm
- Power Supply: 440 v 3 Phase 50 hz
SPACE REQUIRED :
1.5 m. ( L) x 1.0 m (W) X 1.5 m (H).
WEIGHT : @ 75 Kg
