RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To determine the cooling efficiency of Cooling Tower.
- To calculate cooling rate.
TECHNICAL DESCRIPTION :

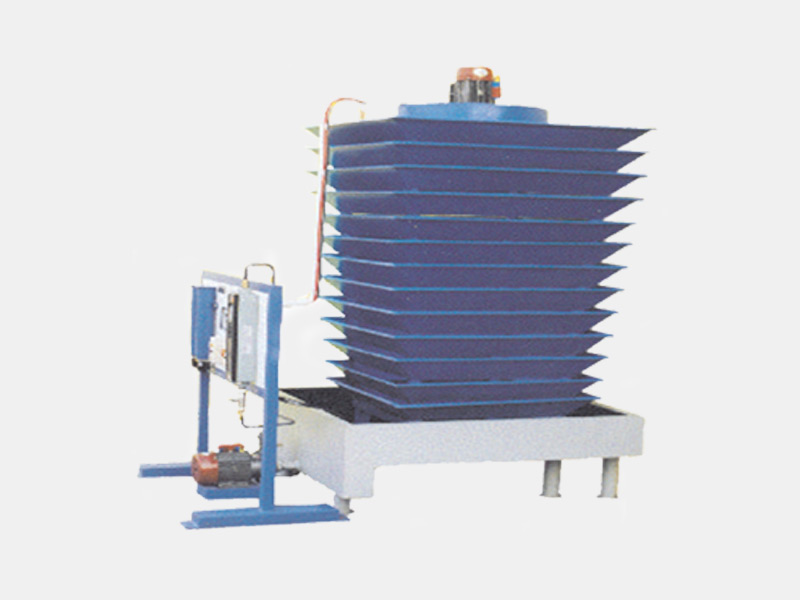

In a present cooling tower, series of fins arranged from top to bottom in such number that, water is sprayed/dropped at the top & it drips/falls down from to fin to the bottom fin. Fins provide maximum surface area to cool the water. Temperature at inlet & outlet can be measured with the help of sensors & digital temperature indicator. This is a typical Natural Cooling Tower & is widely used in small scale units. Its maintenance cost is also negligible. Flow Rate of water measured by using rotameter.
DIMENSIONS AND WEIGHT :
Size : 1.5 m.(L)x 1.5 m(W) X 2m ( H )
Weight : Approx. 120 Kg
SERVICE REQUIRED :
Power Supply : 440 v Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
