RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Evaporation Process.
- To calculate the rate of Evaporation.

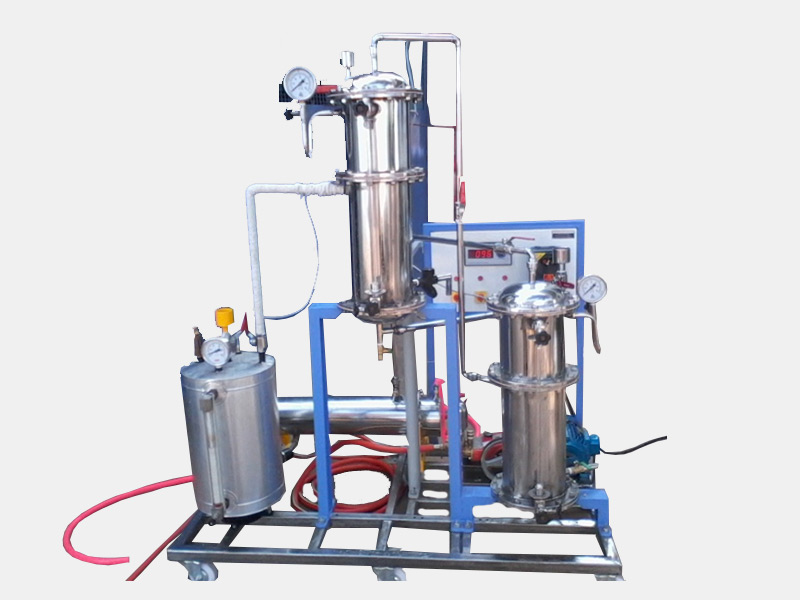

TECHNICAL DESCRIPTION :
This unit consists of :
Main shell : 2 No.
Tubes are fixed on triangular pitch
Down commer
sight glass will be provided
Type : Boiler gauge glass.
Heating Arrangement by Steam :
- Water ring vaccum pump of 1 HP Motor for suction
- Product receiver of 5 Ltr. capacity
- Condenser will be provided.
Control Panel :
- 12 Channel digital temperature indicator.
- Set of thremocouples for above temperature indicator.
- Compensating cable for above thermocouple.
DIMENSIONS AND WEIGHT :
Size : 1.5 m.(L)x 1m(W) X 1.5m ( H )
Weight : Approx. 100 Kg
SERVICE REQUIRED :
Power Supply : 440 v 3 Phase Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
