RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Study of Isothermal Batch Reactor.
• To calculate the reaction rate constant k for given reaction in isothermal batch reactor.

TECHNICAL DESCRIPTION :

Batch reactor is simple, needs little supporting equipment and therefore ideal for small scale experimental studies on reaction kinetics. Industrially it is used when relatively small amounts of material are to be treated.

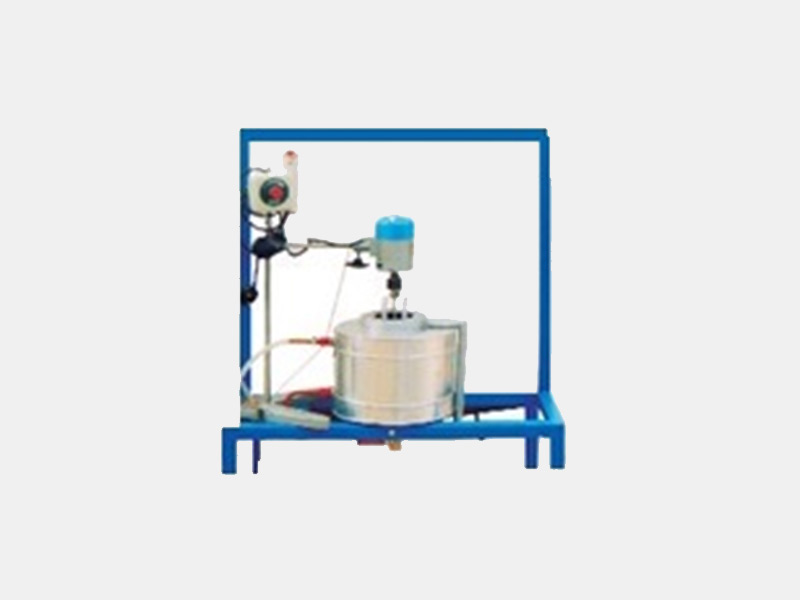

Experimental Setup

• Reactor : Material Stainless steel (SS)
• Water Bath : Material SS, Double Wall, Insulated with glass Wool.
• Heater : Nichrome wire heater.
• Stirrer : 1 No.SS impeller and shaft coupled to Digital Temp.
• Indicator: 0F H–P 2 0M0o 0t oCr, Indicator cum Controller.
• Temp Sensor : CR /AL Type
• Piping : SS, PVC
• Setup Mounting: On sturdy MS stand with powder coated

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate, HCL, Phenolphthalein indicator, Distilled water

SERVICE REQUIRED:

• Water Supply: @ 2 lpm
• Power Supply: 230 V, 50 Hz, A.C.

SPACE REQUIRED :

1 m. ( L) x 1.0 m (W) X 1 m (H).
WEIGHT : @ 45 Kg
