RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Study of Adiabatic Batch Reactor.
• To calculate the reaction rate constant k for given reaction in Adiabatic batch reactor.

TECHNICAL DESCRIPTION :

Adiabatic batch reactor is simple, needs little supporting equipment and therefore ideal for small scale experimental studies on reaction kinetics. Industrially it is used when relatively small amounts of material are to be treated.

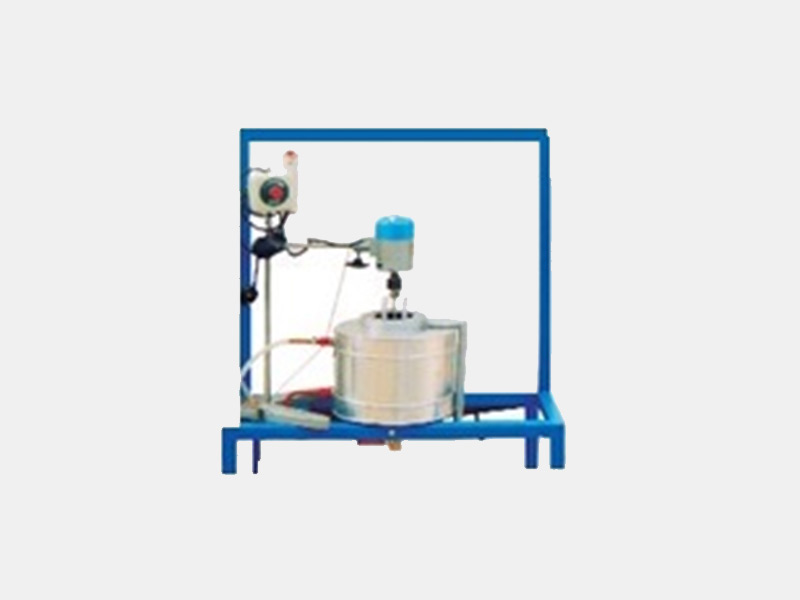

Experimental Setup

• Reactor : Material Stainless steel (SS).
• Water Bath : Material SS , Double Wall Insulated with glass wool .
• Heater : Nichrome wire heater.
• Stirrer : 1 No.SS impeller and shaft coupled to Digital Temp.
• Indicator : 0F H–P 2 0M0o 0t oCr, Indicator cum Controller.
• Temp Sensor : CR /AL Type.
• Stop watch : Electronic.
• Piping : SS, PVC.
• Setup Mounting: On sturdy MS stand with powder coated.

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate ,HCL , Phenolphthalein indicator , Distilled water.

SERVICE REQUIRED:

• Water Supply: @ 2 lpm
• Power Supply: 230 V, 50 Hz, A.C.

SPACE REQUIRED :

1 m. ( L) x 1.0 m (W) X 1 m (H).
WEIGHT : @ 45 Kg
