RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Study of Semi Batch Reactor.
• To calculate the reaction rate constant k for given reaction in Semi batch reactor.

TECHNICAL DESCRIPTION :

Semi Batch reactor is simple, needs little supporting equipment and therefore ideal for small scale experimental studies on reaction kinetics. Industrially it is used when relatively small amounts of material are to be treated.

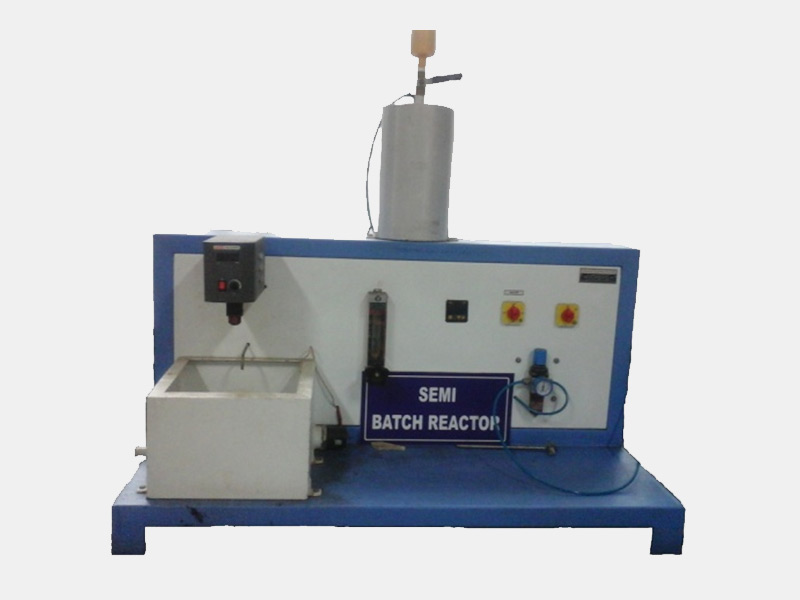

Experimental Setup

• Reactor : Material Stainless steel (SS)
• Feed Circulation : By Compressed Air.
• Pressure Regulator : 0-2 kgf / cm2 .
• Pressure Gauge : Bourdon type 0 – 2 kgf / cm2.
• Feed Tank : 1 No. of stainless steel feed tank.
• Flow Measurement : 1 No. Pre calibrated Rota meter.
• Stirrer : 1 No.SS impeller and shaft coupled to FHP Motor.
• Piping : SS, PVC.
• Setup Mounting: On sturdy MS stand with powder coated.

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate ,HCL , Phenolphthalein indicator , Distilled water.

SERVICE REQUIRED:

• Air Supply: @ 4 kg/cm²
• Water Supply: @ 2 lpm
• Power Supply: 230 V, 50 Hz, A.C.

SPACE REQUIRED :

1 m. ( L) x 1.0 m (W) X 1 m (H).
WEIGHT : @ 50 Kg
