RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Study of Isothermal Continuous stirred tank reactor.
• To calculate the reaction rate constant k for given reaction in Isothermal Continuous stirred tank reactor.

TECHNICAL DESCRIPTION :

C.S.T.R is a reactor in which the content are well stirred and uniform throughout . Thus exit stream from this reactor has the same composition as the fluid within the reactor. We can refer also mixed type reactorThe reactants are initially charged in to a container, mixed well and then left to react for certain period of time. At any instant the composition throughout the rector is uniform.

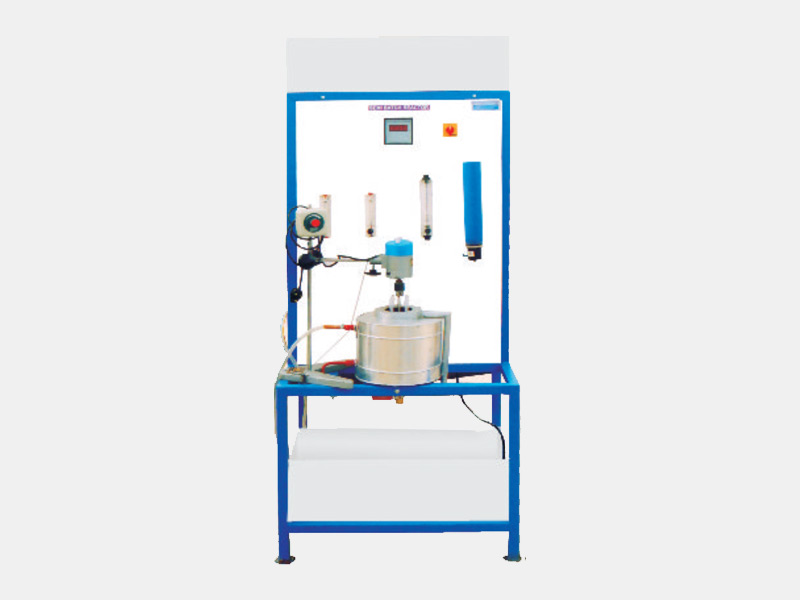

Experimental Setup

• Reactor : Material Stainless steel (SS) .
• Flow Measurement : 2 No. Pre calibrated Rota meter.
• Feed Tank : 2 No. of stainless steel feed tank.
• Feed Circulation : By Compressed Air.
• Pressure Regulator : 0-2 kgf / cm2 .
• Pressure Gauge : Bourdon type 0 – 2 kgf / cm2.
• Water Bath : Material SS , Double Wall , Insulated with glass Wool.
• Heater : Nichrome wire heater.
• Stirrer : 1 No.SS impeller and shaft coupled to FHP Motor .
• Digital Temp Indicator : 0 – 200 0 C , Indicator cum Controller.
• Temp Sensor : CR/AL Type.
• stop watch : Electronic.
• Piping : SS , PVC.
• Setup Mounting : On sturdy MS stand with powder coated.

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate ,HCL , Phenolphthalein indicator , Distilled water.

SERVICE REQUIRED:

• Air Supply: @ 6 CFM at 4 kg/cm²
• Power Supply: 230 V, 50 Hz, A.C.

SPACE REQUIRED :

1.5 m. ( L) x 1.0 m (W) X 1.5 m (H).
WEIGHT : @ 55 Kg
