RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Study of Isothermal Packed bed Reactor .
• To calculate the reaction rate constant k for given reaction in isothermal Packed bed reactor.

TECHNICAL DESCRIPTION :

When the variation in reaction rate within a reactor is so large , we choose to account for these variations in the method of analysis , then we have packed bed reactor , since rates are concentrations dependant such large variation may be expected to occur when compositions of reactant fluid changes significantly passing through the reactor.

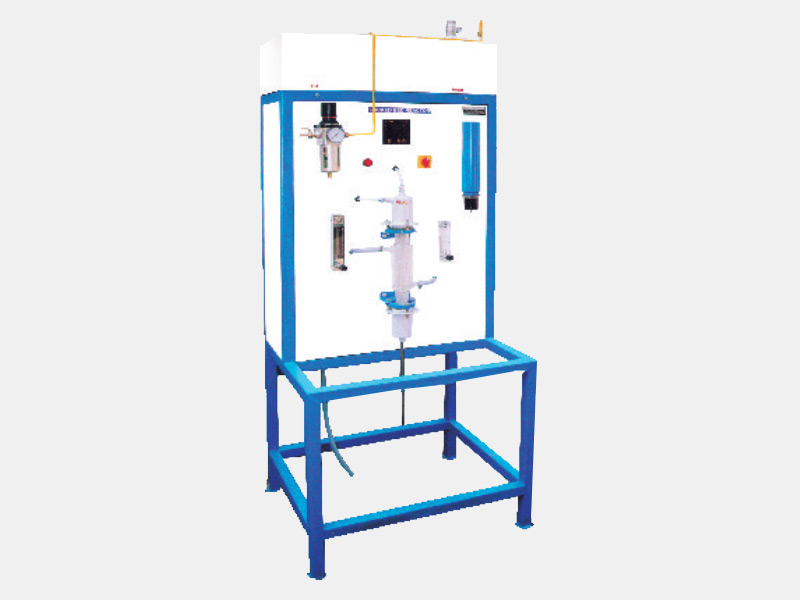

Experimental Setup

• Reactor : Material Borosilicate glass ( Jacketed )
• Packing : Raschig Rings
• Flow Measurement : 2 No. Pre calibrated Rota meter
• Feed Tank : 2 No. of stainless steel feed tank
• Feed Circulation : By Compressed Air
• Pressure Regulator : 0 – 2 kgf / cm2
• Pressure Gauge : Bourdon type0 – 2 kgf / cm2
• Digital Temp Indicator : 0 – 200 0 C , Indicator cum controller
• Temp Sensor : CR/AL Type
• Stop watch : Electronic
• Piping : SS , PVC
• Setup Mounting : On sturdy MS stand with powder coated

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate ,HCL , Phenolphthalein indicator , Distilled water.

SERVICE REQUIRED:

• Air Supply: @ 6 CFM at 4 kg/cm²
• Power Supply: 230 V, 50 Hz, A.C.

SPACE REQUIRED :

1.5 m. ( L) x 1.0 m (W) X 1.8 m (H).
WEIGHT : @ 50 Kg
