RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Study of Tubular Flow Reactor .
• To calculate the reaction rate constant k for given reaction in Tubular Flow Reactor.

TECHNICAL DESCRIPTION :

When the variation in reaction rate within a reactor is so large , we choose to account for these variations in the method of analysis , then we have packed bed reactor , since rates are concentrations dependant such large variation may be expected to occur when compositions of reactant fluid changes significantly passing through the reactor.

Experimental Setup

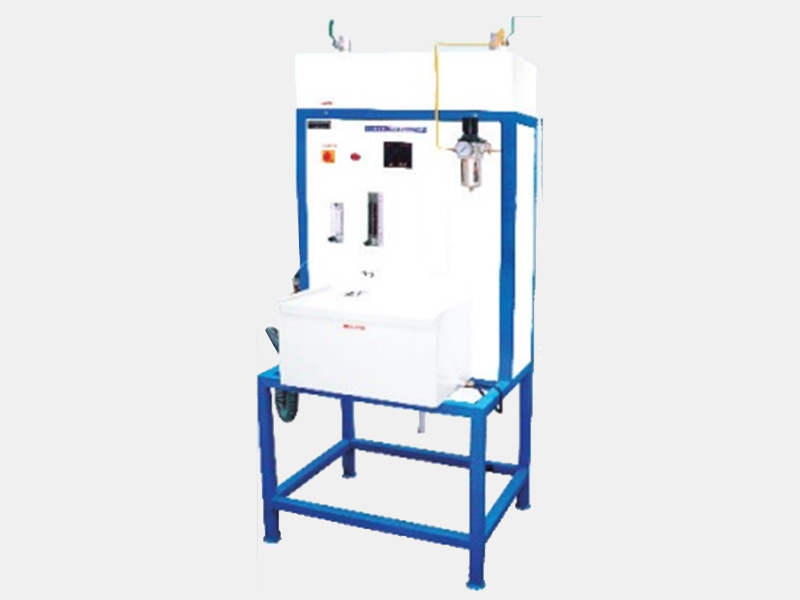

• Reactor : Material Stainless steel (SS) .
• Flow Measurement : 2 No. Pre calibrated Rota meter.
• Feed Tank : 2 No. of stainless steel feed tank.
• Feed Circulation : By Compressed Air.
• Pressure Regulator : 0-2 kgf / cm2 .
• Pressure Gauge : Bourdon type0 – 2 kgf / cm2 .
• Piping : SS , PVC.
• Product receiver : 1 No. SS tank.
• Setup Mounting : On sturdy MS stand with powder coated.

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate ,HCL , Phenolphthalein indicator , Distilled water.

SERVICE REQUIRED:

• Air Supply: @ 6 CFM at 4 kg/cm²
• Power Supply: 230 V, 50 Hz, A.C.

SPACE REQUIRED :

1.5 m. ( L) x 1.0 m (W) X 1.8 m (H).
WEIGHT : @ 50 Kg
