RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Study of Isothermal Tubular Flow Reactor .
• To calculate the reaction rate constant k for given reaction in Isothermal Tubular Flow Reactor.

TECHNICAL DESCRIPTION :

Tubular flow reactor is characterized by the fact that the flow of fluid through the reactor is orderly no element of fluid overtaking or mixing with any other element ahead or behind . Actually there may be lateral mixing of fluid in plug flow reactor . However , there must be no mixing or diffusion along the flow path. In a plug flow reactor composition of fluid varies from point to point along the flow path.

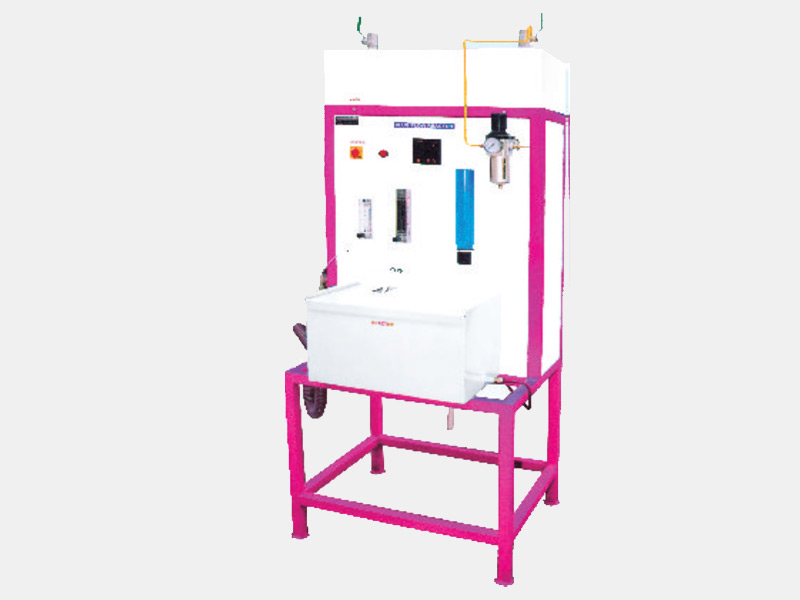

Experimental Setup

• Reactor : Material Stainless steel (SS) .
• Flow Measurement : 2 No. Pre calibrated Rota meter.
• Feed Tank : 2 No. of stainless steel feed tank.
• Feed Circulation : By Compressed Air.
• Pressure Regulator : 0-2 kgf / cm2.
• Pressure Gauge : Bourdon type0 – 2 kgf / cm2.
• Water Bath : Material SS , Double Wall , Insulated with glass Wool.
• Heater : Nichrome wire heater .
• Digital Temp Indicator : 0 – 200 0 C ,Indicator cum Controller.
• Temp Sensor : CR /AL Type.
• Stop watch : Electronic.
• Piping : SS , PVC.
• Product receiver : 1 No. SS tank.
• Setup Mounting : On sturdy MS stand with powder coated.

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate ,HCL , Phenolphthalein indicator , Distilled water.

SERVICE REQUIRED:

• Air Supply: @ 6 CFM at 4 kg/cm²
• Power Supply: 230 V, 50 Hz, A.C.

SPACE REQUIRED :

1.5 m. ( L) x 1.0 m (W) X 1.8 m (H).
WEIGHT : @ 50 Kg
