RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study of Packed Bed reactor.
• To determine the residence time distribution in the Packed Bed Reactor for pulse and step inputs.

TECHNICAL DESCRIPTION :

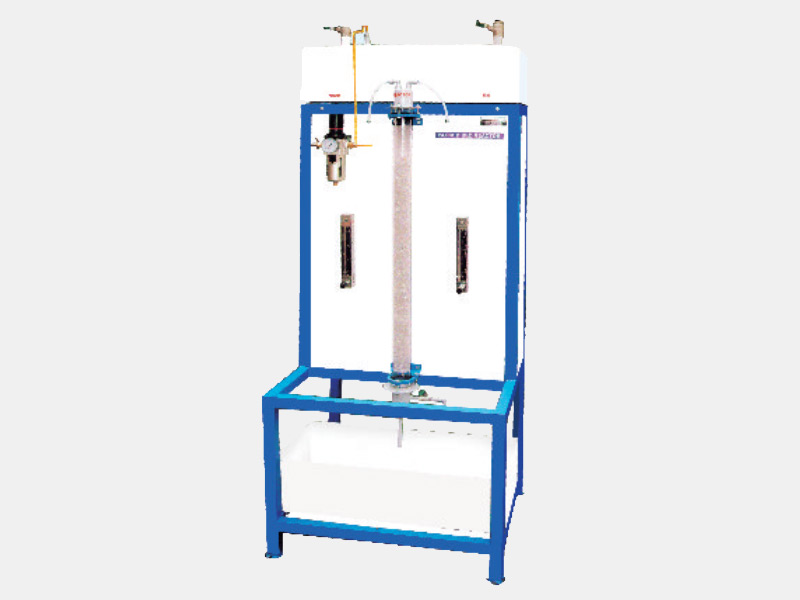

The set up consist of plug flow reactor and stirred tank reactor arranged in series in which the reaction is carried out. The flow rate of reactant is measured by the Rota meter. The temperature is measured by sensor.

Experimental Setup

• Reactor : Material Borosilicate glass.
• Packing : Raschig Rings.
• Flow Measurement : 2 No. Pre calibrated Rota meter.
•
• Feed Tank : 2 No. of stainless steel feed tank.
• Feed Circulation : By Compressed Air .
• Pressure Regulator : 0 – 2 kgf / cm2 .
• Pressure Gauge : Bourdon type0 – 2 kgf / cm2.
• Piping : SS , PVC.
• Setup Mounting : On sturdy MS stand with powder coated.

CHEMICALS REQUIRED:

NaOH, Ethyl Acetate ,HCL , Phenolphthalein indicator , Distilled water.

SERVICE REQUIRED:

• Air Supply: @ 6 CFM at 4 kg/cm²
• Water Supply : @ 2 lpm
• Power Supply: 230 V, 50 Hx. A.C.

SPACE REQUIRED :

1.5 m. ( L) x 1.0 m (W) X 1.5 m (H).
WEIGHT : @ 50 Kg
