RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the Solar Pump Test Rig.
TECHNICAL DESCRIPTION :

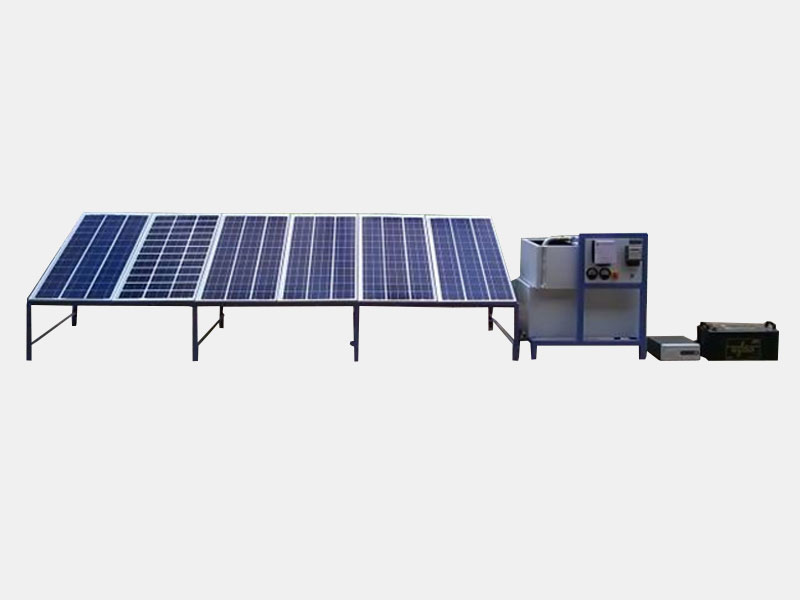

Solar Photovoltaic array mounting structure suitable for mounting the SPV module is supplied. The pump is erected with HDPE pipe of suitable length cables and interconnecting wires as required for installation is supplied suitable box for housing the inverter. A measuring tank is provided for measurement of flow of water through the pump. This system can be used for AC/ DC Pumps .
DIMENSIONS AND WEIGHT :
Size : 2.5 m.(L)x 1.2 m(W) X 1.0 m ( H )
Weight : Approx. 60 Kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
