RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To Measure solar radiation flux density.

TECHNICAL DESCRIPTION :

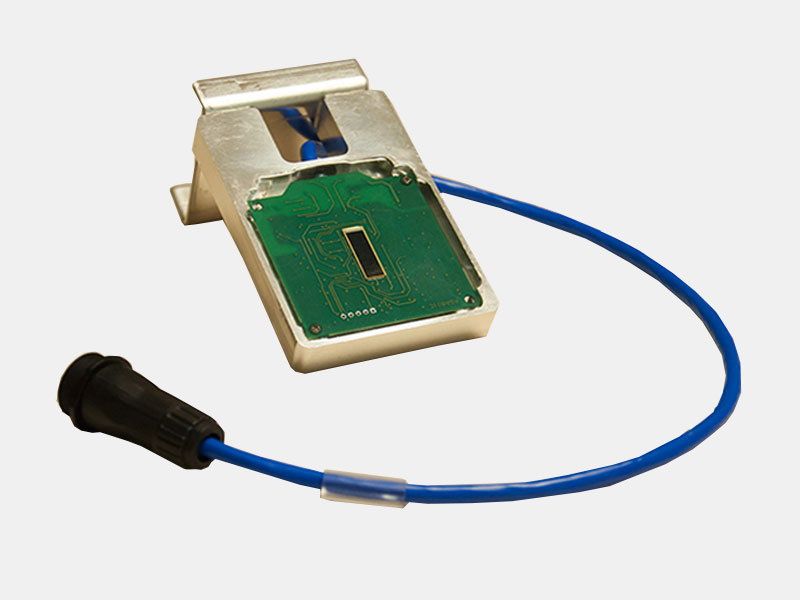

Photovoltaic pyranometer is a derivation of the photodiode pyranometer . this pyranometer is also known as "reference PV cell", "irradiance sensor", "solarimeter", "solar sensor" . The active part of the sensor is composed of a photovoltaic cell working in near short-circuit condition. As such, the generated current is directly proportionate to the solar radiation hitting the cell in a range between 350 nm and 1150 nm .

A photovoltaic pyranometer is essentially assembled with the following parts:

• A metallic container with a fixing staff
• A small photovoltaic cell
• Signal conditioning electronics
• Silicon sensors such as the photodiode and the photovoltaic cell vary the output in function of temperature

DIMENSIONS AND WEIGHT :

Size : 0.4 m.(L)x 0.4 m(W) X 0.4 m ( H )
Weight : Approx. 7 Kg

SERVICE REQUIRED :

Power Supply : 230 V AC

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
