RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study Gear tooth Vernier Calliper.
TECHNICAL DESCRIPTION :

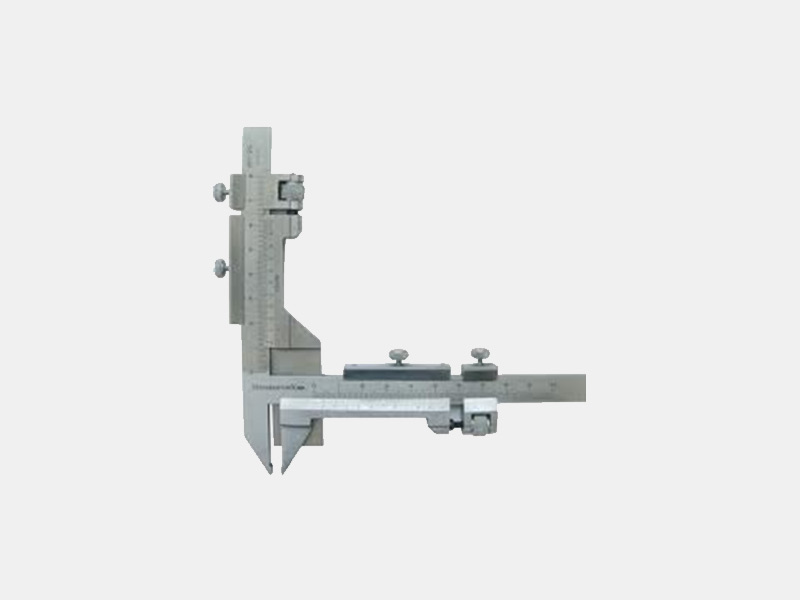

It is used to measure the thickness of gear teeth at the pitch line or choral thickness of teeth & the distance from the top of tooth to the chord. The thickness at pitch line & the addendum is measured by an adjustable tongue, each of which is adjusted independently by adjusting screw on graduated bars. The effect of zero errors should be taken onto consideration.
DIMENSIONS AND WEIGHT :
Size : 0.4 m.(L)x 0.1 m(W) X 0.3m ( H )
Weight : Approx. 0.8 Kg
SCOPE OF DELIVERY:
