RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study Outside Micrometer.
TECHNICAL DESCRIPTION :

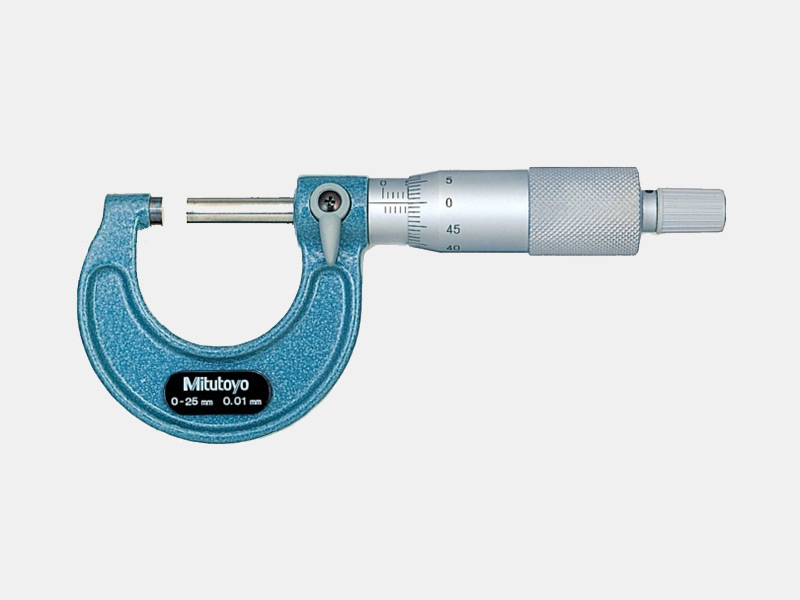

The micrometer screw gauge essentially consists of an accurate screw having about 10 or 20 threads per cm and revolves in a fixed nut. The end of the screw forms one measuring tip and the other measuring tip is constituted by a stationary anvil in the base of the frame. The screw is threaded for certain length and is plain afterwards. The plain portion is called sleeve and its end is the measuring surface. The spindle is advance or retracted by turning a thimble connected to the spindle. The spindle is a slide is a slide fit over the barrel and barrel is the fixed part attached with the frame. A lock nut is provided for locking a dimension by preventing motion of the spindle.
DIMENSIONS AND WEIGHT :
Size : 0.2 m.(L)x 0.1 m(W)
Weight : Approx. 0.5 Kg
SCOPE OF DELIVERY:
