RANGE OF EXPERIMENTS TO BE CARRIED OUT :

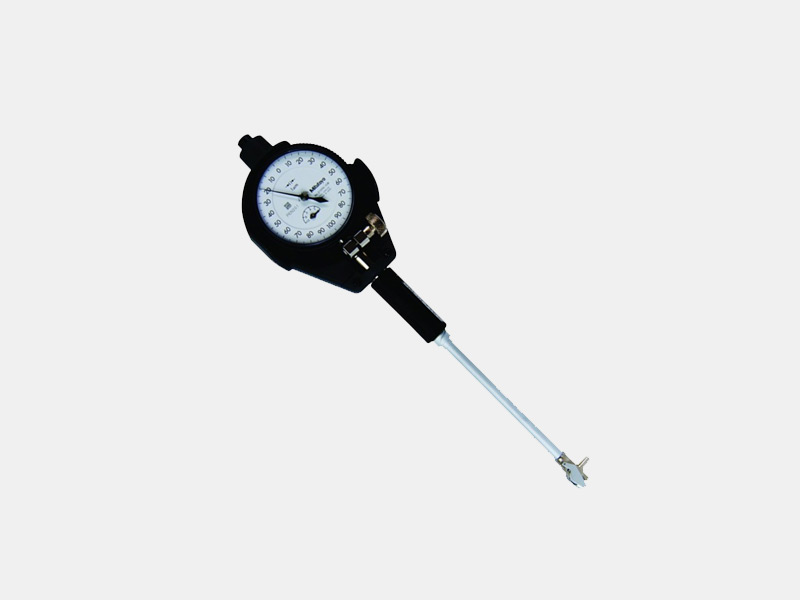

- To study the Dial Bore Gauge.
TECHNICAL DESCRIPTION :
Suitable for rapid , accurate measurement of size, concentricity, wear taper etc. in a wide range of bores. It has one fixed and one moving anvil and a self-adjusting center shoe. A datum point can be set by using a setting ring of a known diameter or a micrometer. ‘Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with dial indicator. To check a bore within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand in to bore. All models have inter changeable anvils to cover a range of bore sizes.
DIMENSIONS AND WEIGHT :
Size : 0.25 m.(L)x 0.0.25 m(W) X 0.3 M (H)
Weight : Approx. 2 Kg
SCOPE OF DELIVERY:
