RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To to measure the dimensions and of shape various Parts.
TECHNICAL DESCRIPTION :

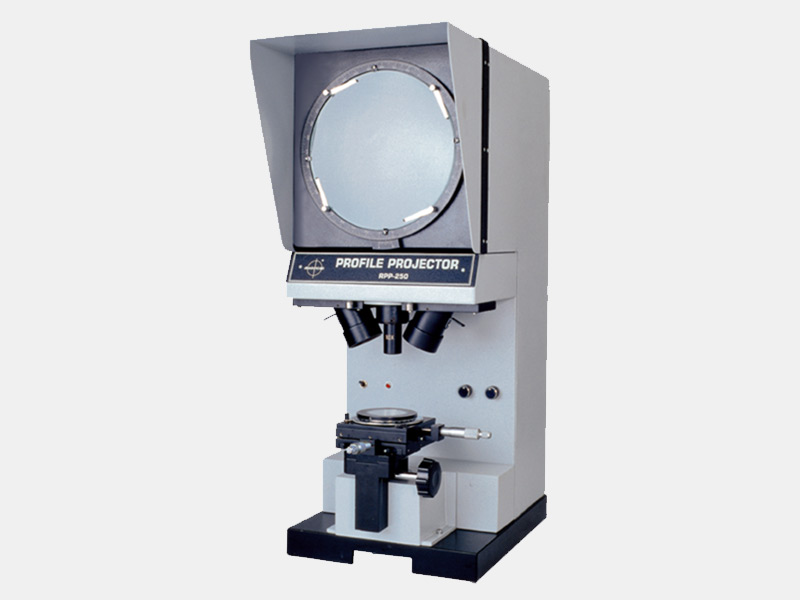

A profile projector is an optical measuring instrument that directs light at an object on its stage and employs lenses to display an enlarged image of the object on a screen, enabling the user to measure its dimensions and check its shape. A profile projector displays an enlarged image of an object on a screen. The user can then easily work with the enlarged image of the object. When measuring the dimensions of the object, the user simply needs to place a scale on the on-screen image; when checking the shape of the object, the user places a reference chart alongside the on-screen image for comparison.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5m(W) X 0.8 m (H)
Weight : Approx. 7 Kg
SERVICE REQUIRED :
Power Supply : 230V AC Single Phase
SCOPE OF DELIVERY:
