RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To view and measure very fine details, shapes and dimensions on small and medium sized tools, dies, and work pieces.
TECHNICAL DESCRIPTION :

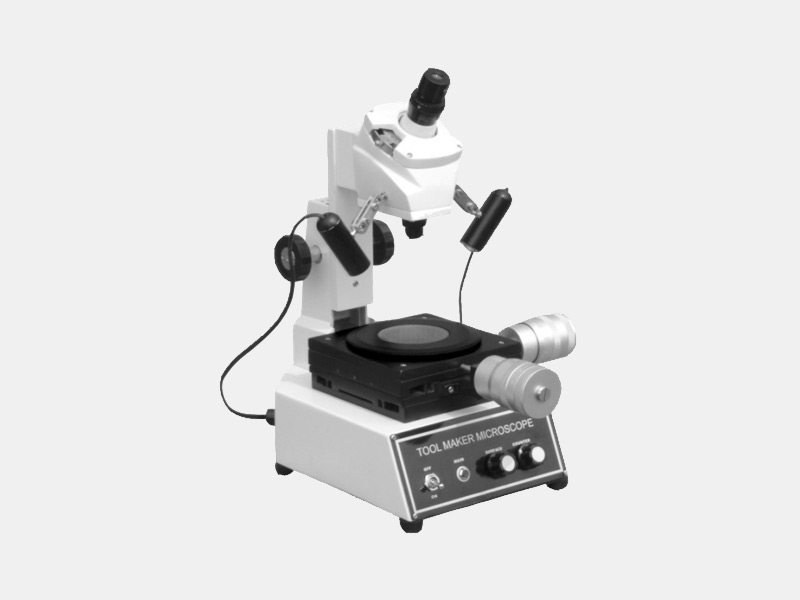

: It is equipped with a glass table that is movable in two principal directions and can be read to 0.01 mm. Microscope is also equipped with a protractor to measure the angular dimensions. It is also equipped with surface illumination. Provision is available to adjust the height of the viewing head to get a sharp image of the object.
DIMENSIONS AND WEIGHT :
Size : 0.4 m.(L)x 0.4m(W) X 0.5 m (H)
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Supply : 230V AC Single Phase
SCOPE OF DELIVERY:
