RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To check the taper angle, run-out concentricity, parallelisim, axial run-out, face squareness with respect to central axis etc.
TECHNICAL DESCRIPTION :

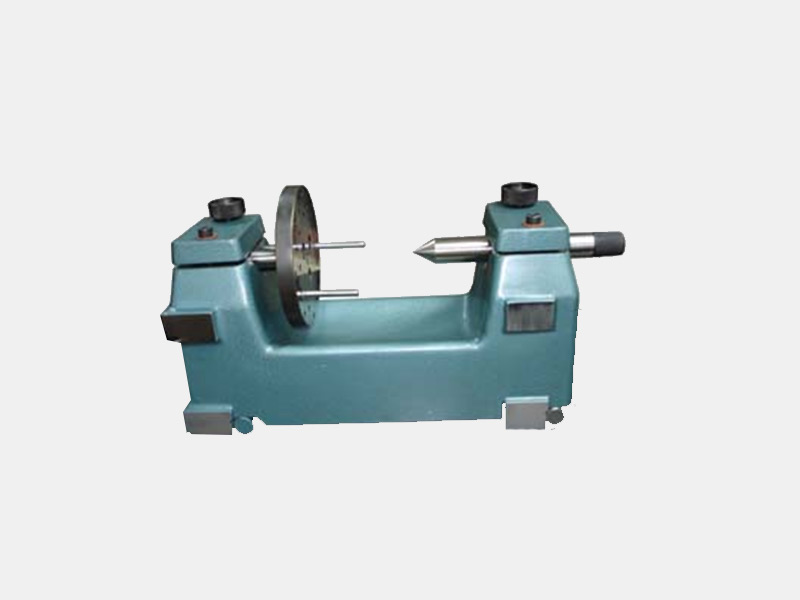

Universal Measuring Block is popularly used for checking the taper angle, run-out concentricity, parallelism, axial run-out, face squareness with respect to central axis etc. The taper angle is measured by using sine principle. The block is made of S. G. Iron. The resting surfaces are hardened ground Lapped. It can be rested at all three planes.
DIMENSIONS AND WEIGHT :
Size : 0.4 m.(L)x 0.3m(W) X 0.4 m (H)
Weight : Approx. 15 Kg
SCOPE OF DELIVERY:
