RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To measure the major , minor , pitch diameter of Screw Thread.
TECHNICAL DESCRIPTION :

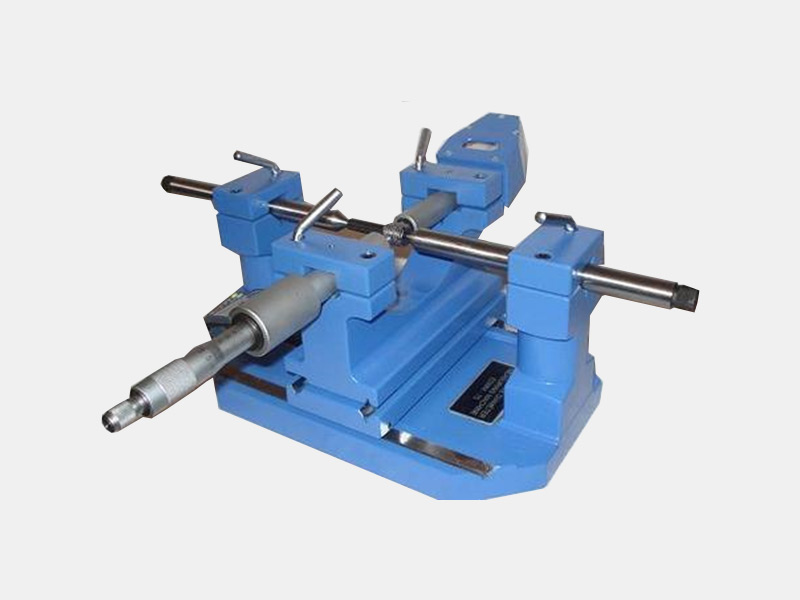

This measuring machine is designed to have accurate measurements of major, minor & effecive diameter of precision screw threads as well as those of odd flutes screw taps. All guide ways and airing parts are hardened and ground It Consist of Dial gauge, micrometer , minor Dia , Master Cylinder ,Work piece, Prism.| Method: Two wire method.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.4m(W) X 0.5 (H)
Weight : Approx. 10 Kg
SCOPE OF DELIVERY:
