RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Check the involute Profile of Gear.

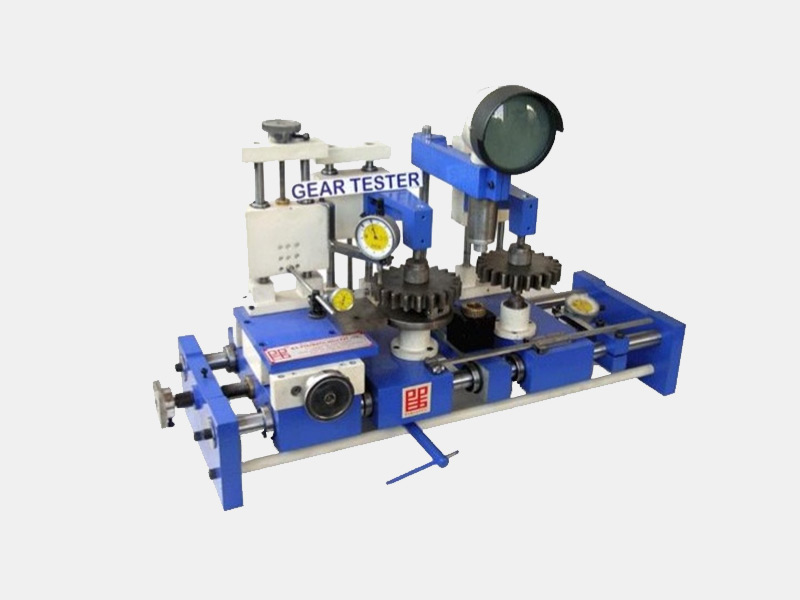

TECHNICAL DESCRIPTION :
It Consist of master gear is mounted on a fixed vertical spindle and the gear to be tested on another similar spindle. These gears are maintained in mesh by spring pressure. Construction The gears are mounted on the two spindles , so that they are free to rotate without measurable clearance. The right spindle can be moved along the table and clamped in any desired position and The right spindle slide is free to move. At first the dial gauge is set to zero and then both gears are mounted on spindles The variation in dial gauge reading are any irregularities in gear under test. A recorder is fitted in the form of waved circular chart.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5m(W) X 0.5 (H)
Weight : Approx. 30 Kg
SERVICE REQUIRED :
Power Supply : 230 v AC Single Phase
SCOPE OF DELIVERY:
