RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Temperature Measurement Thermocouple.
TECHNICAL DESCRIPTION :

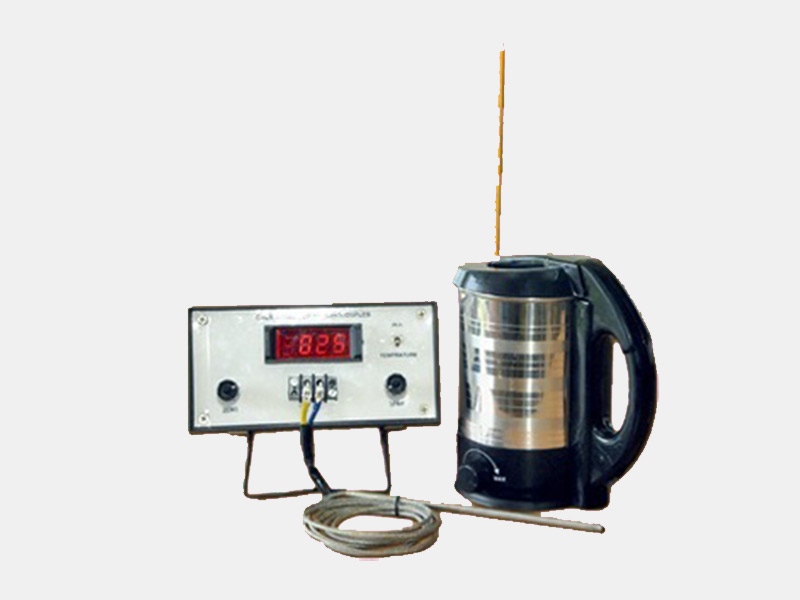

Here three Different types of Thermocouples are selected & used to measure the temperature. The output signal from signal conditioning card is fed to next Microcontroller based Digital readout & its related circuit will be selected & actual measured temperature will be shown on Digital Read Out. An electric kettle is also provided for water bath. And also mercury glass thermometer.
DIMENSIONS AND WEIGHT :
Size : 0.3 m.(L)x 0.3m(W) X 0.3m ( H )
Weight : Approx. 2 Kg
SERVICE REQUIRED :
Power Supply : 230V AC Single Phase
Water : 1 ltr.
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
