RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study and plot the characteristics of control valve.
TECHNICAL DESCRIPTION :

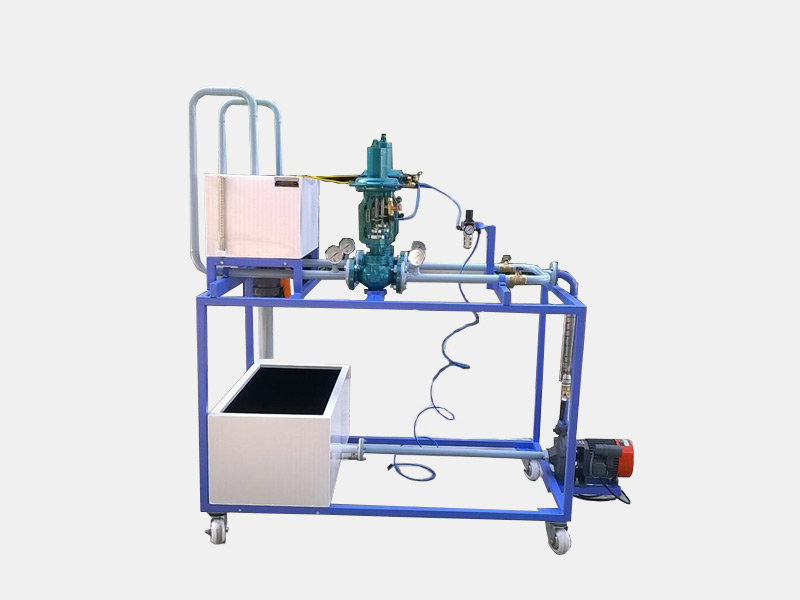

The setup consists of pneumatic actuated diaphragm control valve of two or three different types. An air filter regulator is used to provide constant air supply. A sump tank with centrifugal pump is provided. A measuring tank with level gauge is provided to measure the flow through the valve. By applying different pressure valve opening can be changed correspondingly flow rate through the valve is also changed. The valve opening and flow rate of water is used to plot the characteristics of control valve. The whole setup mounted on sturdy iron frame , powder coated with good color combination.
DIMENSIONS AND WEIGHT :
Size : 0.75 m.(L)x 0.5m(W) X 1.2m ( H )
Weight : Approx. 75 Kg
SERVICE REQUIRED:
Air Supply : @ 5 kg/cm2
Water : 100 ltr.
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
