RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To Study the response of interacting system.
• To study the interacting system & find the parameter such as time constant and flow resistance of each tank.

TECHNICAL DESCRIPTION :

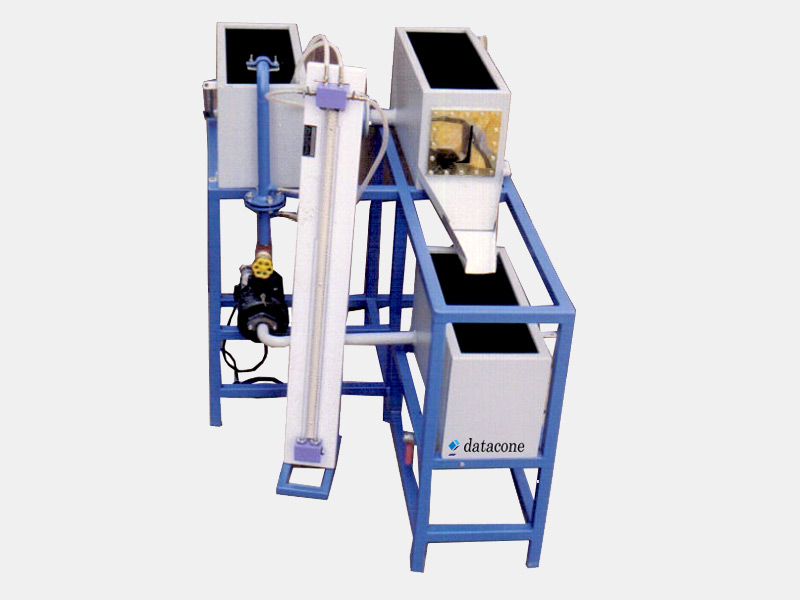

An interacting system is one in which working at each of its element depends upon the state of the other elements. In the given experimental set up, two tanks are connected to each other and hence called interacting system. The flow Resistance ‘ R ‘ depends upon the difference between h1 & h2 & so system is interacting . A sump tank with centrifugal pump is provided. A rotameter is used to measure the flow the system. The whole setup mounted on sturdy iron frame, powder coated with good color combination.

DIMENSIONS AND WEIGHT :

Size : 0.75 m.(L)x 0.75m(W) X 1.2m ( H )
Weight : Approx. 45 Kg

SERVICE REQUIRED:

Water : 100 ltr.

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
