RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the response of second order system.
TECHNICAL DESCRIPTION :

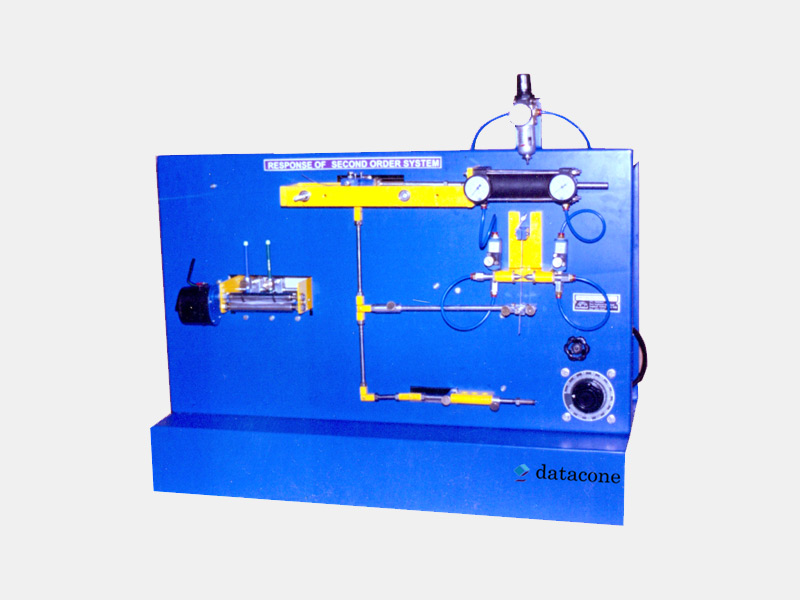

The setup consists of pneumatic double acting cylinder, Air filter regulator for constant air supply, suitable motor with autotransformer. The whole setup mounted on suitable fame with good color combination.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.3m(W) X 0.5m ( H )
Weight : Approx. 15 Kg
SERVICE REQUIRED:
Power Supply : 230V AC Single Phase
Air Supply : @5 kg cm2
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
