RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the response of Flapper Nozzle type pneumatic proportional controller
TECHNICAL DESCRIPTION :

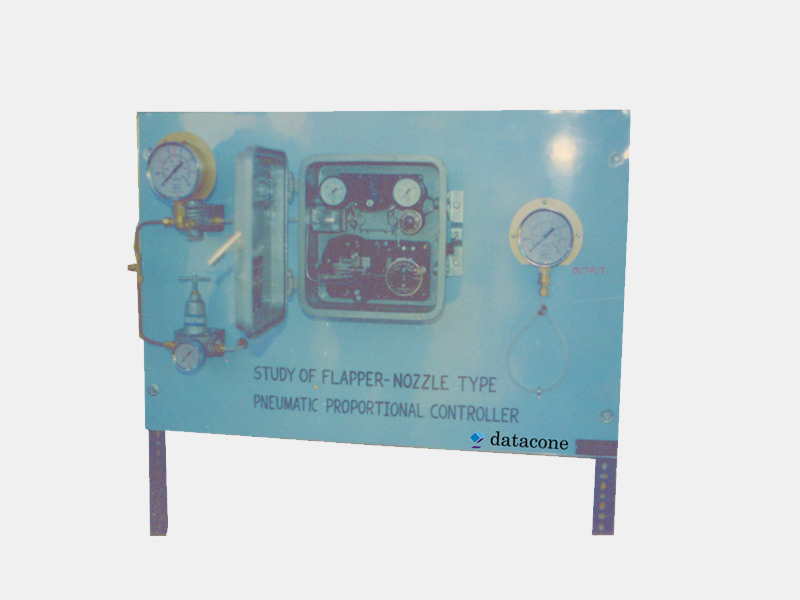

The setup consists of Flapper Nozzle type pneumatic proportional controller with required accessories. The whole setup mounted on suitable fame with good color combination.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.3m(W) X 0.5m ( H )
Weight : Approx. 15 Kg
SERVICE REQUIRED:
Power Supply : 230V AC Single Phase
Air Supply : @5 kg / cm2
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
