RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the closed loop computerized flow control system with suitable software .
TECHNICAL DESCRIPTION :

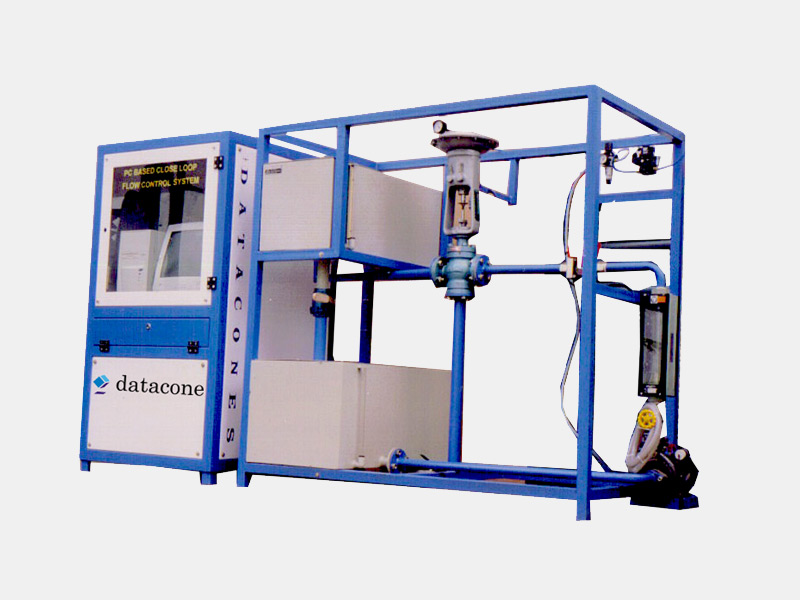

The system comprises of Pneumatic actuated diaphragm control valve , wheel flow transmitter, I/P Convertor , ADC and DAC card , air filter regulator. A Labview / Scada software is used for the data acquisition, analysis and controlling. The I/P convertor controls the flow of air to Pneumatic actuated diaphragm control valve which ultimately controls the flow of water through the valve. A sump tank with centrifugal pump is provided. A rotameter is used to measure the flow the system. The whole setup mounted on sturdy iron frame, powder coated with good color combination.
DIMENSIONS AND WEIGHT :
Size : 1.2 m.(L)x 0.75m(W) X 1.2m ( H )
Weight : Approx. 75 Kg
SERVICE REQUIRED:
Power Supply : 230V AC Single Phase
Water : 100 ltr.
Air Supply : @ 5 kg /cm2
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
