RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the measurement and calibration of differential pressure transducer.
TECHNICAL DESCRIPTION :

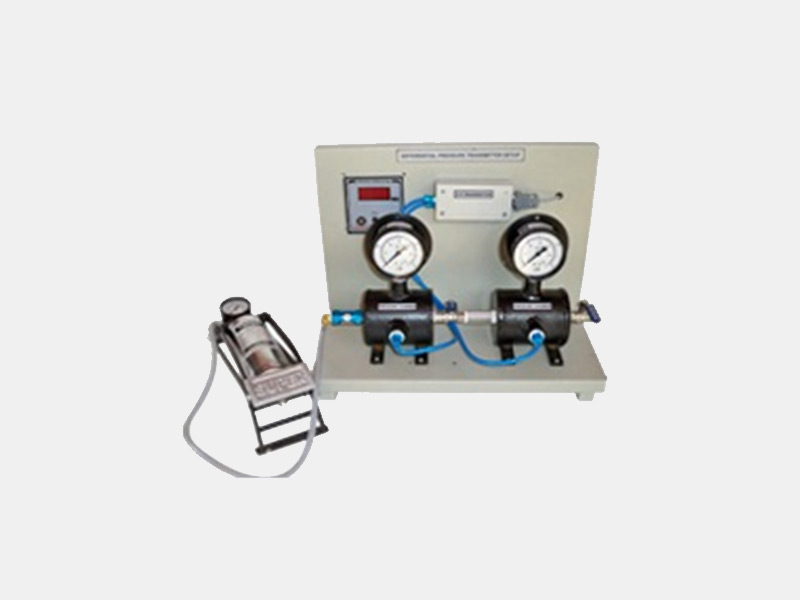

The setup consists of two pressure tanks for high pressure and for low pressure. The two pressure tanks are fitted with pressure gauges. The differential pressure transmitter is connected to the two tanks. The pressure is built by a foot air pump. Digital instrument is provided to indicate the differential pressure with transmitter output.
DIMENSIONS AND WEIGHT :
Size : 0.3 m.(L)x 0.3m(W) X 0.3m ( H )
Weight : Approx. 4 Kg
SERVICE REQUIRED:
Power Supply : 230V AC Single Phase
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
