RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Elevator lift module.
TECHNICAL DESCRIPTION :

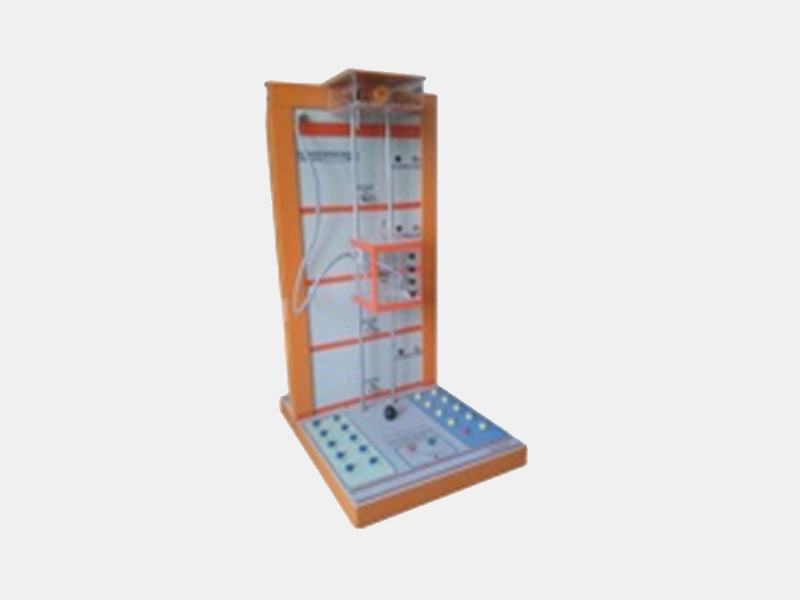

This model is intended as a control object for programming exercises with a control system, PLC or computer. The process consists of a lift cage to be moved between 3+Ground floor. Push buttons are provided on all the floors to call the lift. The lift cage has LEDs to indicate the lift position and a button for door open/close simulation. Geared DC motor is used to move the cage up and down through a pulley and rope arrangement.
DIMENSIONS AND WEIGHT :
Size : 0.6 m.(L)x 0.6m(W) X 0.5m ( H )
Weight : Approx. 15 Kg
SERVICE REQUIRED:
Power Supply : 230V AC Single Phase
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
