RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the pneumatic PI Controller with valve positioner.
TECHNICAL DESCRIPTION :

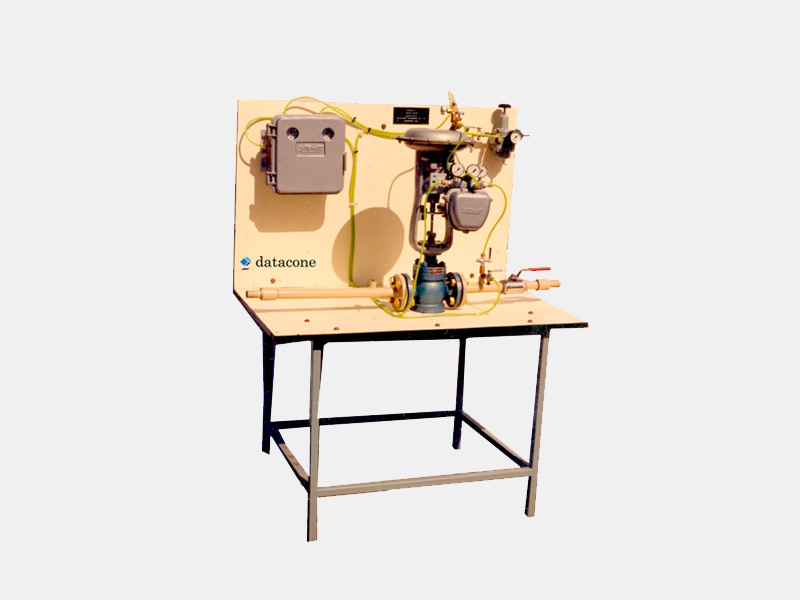

The setup consists of pneumatic PI controller with valve positioner. An air filter regulator is used to provide constant air supply. A pneumatic actuated diaphragm control valve is act as final control element. The whole setup mounted on sturdy iron frame , powder coated with good color combination.
DIMENSIONS AND WEIGHT :
Size : 0.75 m.(L)x 0.5m(W) X 1.2m ( H )
Weight : Approx. 75 Kg
SERVICE REQUIRED:
Air Supply : @ 5 kg/cm2
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
