RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Prepare metallographic specimens.
TECHNICAL DESCRIPTION :

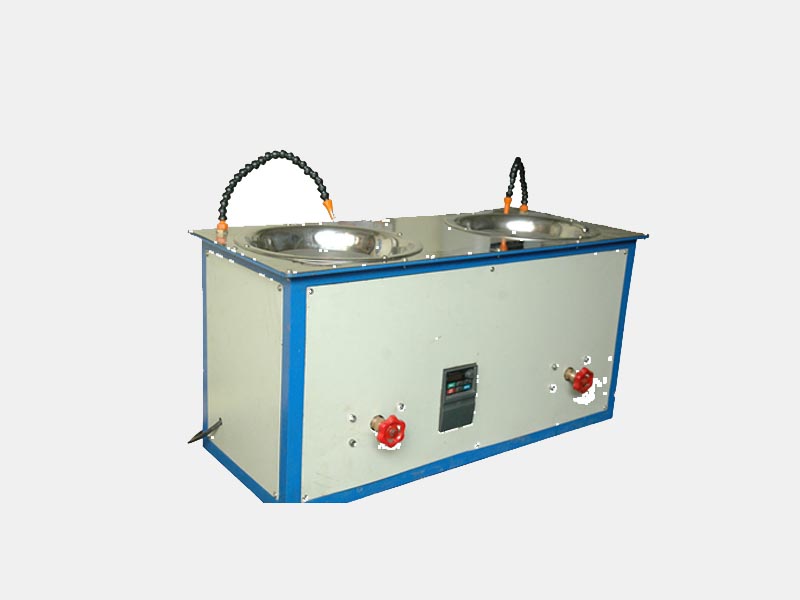

Polishing machines are used for preparing metallo graphic specimens & petrographic from peregrinating to smooth surface finish for micro structure examination. Two independent polishing units is mounted on a common MS frame.The machine is basically of motor driven disc type to provide step less variable speed from 400 to 1100 RPM approx. The driven is provided by suitable H.P. single phase 220V A.C. Motor. The brass ped steel disc of 8" or 10" dia (easily replaceable).
DIMENSIONS AND WEIGHT :
Size : 1.0 m.(L)x 0.8 m(W) X 0.8m ( H )
Weight : Approx. 40 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
Computer.
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
