RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study the Pensky Martene Flash Point Apparatus
• To determine flash point and fire point of the given lubricating oil Using Pensky Marten’s apparatus

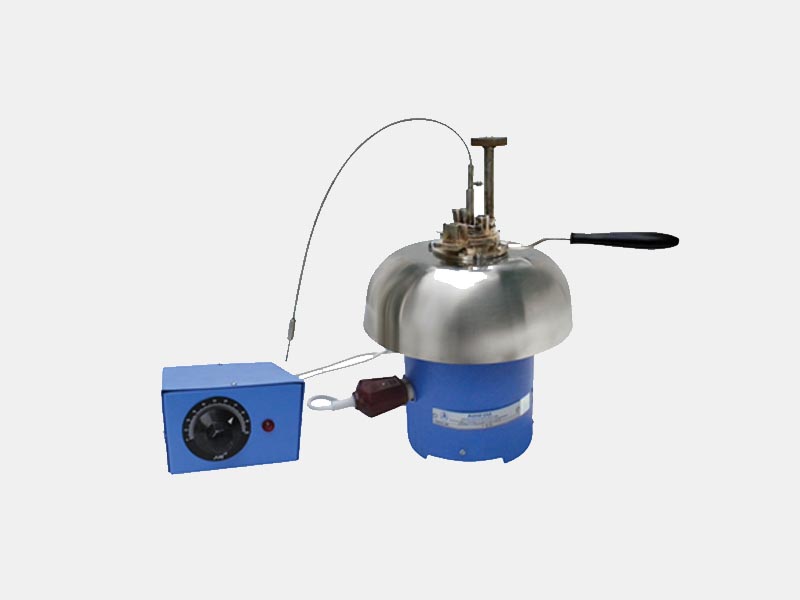

TECHNICAL DESCRIPTION :

It is used to determine the flash point of the lubricating oils, fuel oils, solvents, solvent containing material and suspension of solids. It consists of three parts Oil cup, Shutter and electric heater. Lid of the cup is provided with four openings of standard sizes, first opening is for stirrer, second is for admission of air, third is for thermometer and fourth is for introducing test flame. An auto transformer is provided to vary the electric supply to the heater. A thermometer is provided to measure the the temperature.

DIMENSIONS AND WEIGHT :

Size : 0.4 m.(L)x 0.4 m(W) X 0.4m ( H )
Weight : Approx. 4 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz
Lubricating Oil : 1 ltr

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
