RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Carbon Residue Apparatus
- To determine carbon Residue of given lubricating oil

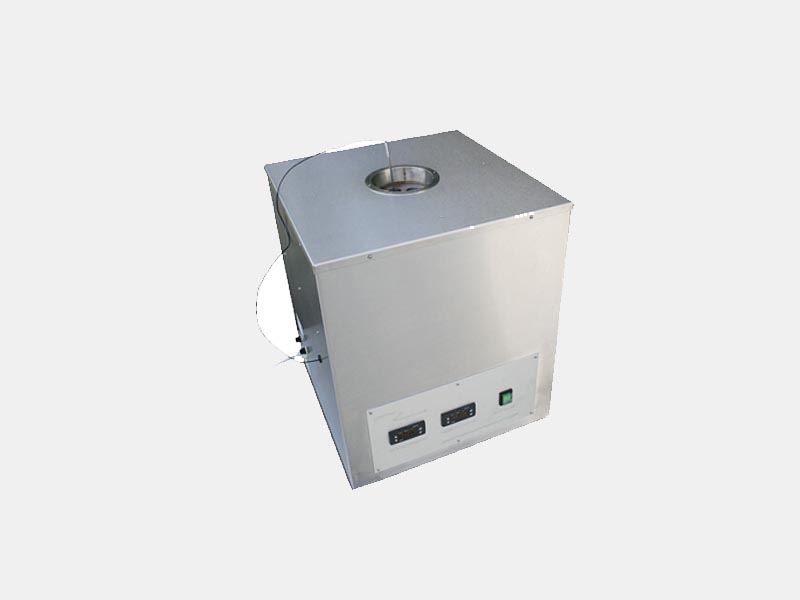

TECHNICAL DESCRIPTION :
The apparatus consists of a solid metal bath having 5 wells to accommodate cocking bulbs, the heavy duty heating elements provided around the bath. Supplied with 5 cocking bulbs, and one syringe. Temperature is accurately controlled and maintained by fully automatic solid state time proportional digital controller and thermocouple. Power supply 230 V, 1 Phase, and 50 Hz.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5 m(W) X 0.5m ( H )
Weight : Approx. 7 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
Lubricating Oil : 1 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
