RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To observe & study the behavior of bed during fluidisation.
- To determine pressure drop unit bed length
TECHNICAL DESCRIPTION :

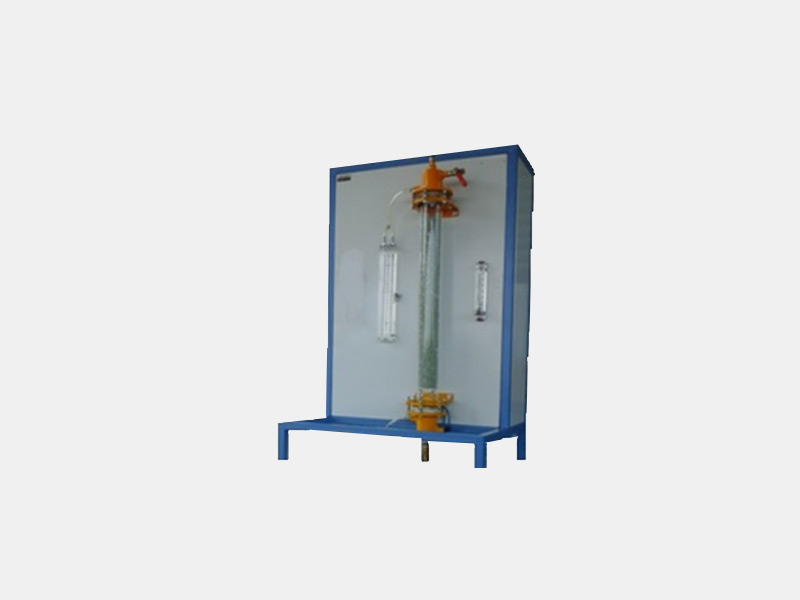

The experimental unit consist of Vertical glass column fitted on Panel. The flow of Air from compressor can be controlled by a valve. A Rotameter is provided for measurement of discharge of Air through the Column. The Pressure drop across the column are measured by using UTube Manometer.
DIMENSIONS AND WEIGHT :
SIZE : 1. m.(L)x 0.7 m(W) X 1.2m (H)
WEIGHT : Approx. 50 Kg
SERVICE REQUIRED :
Power Supply : 230v, AC, SinglePhase, 50HZ
Air Supply: @ 5 kg / cm2
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
