RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To perform open loop test.
• To perform fisrst order system.

TECHNICAL DESCRIPTION :

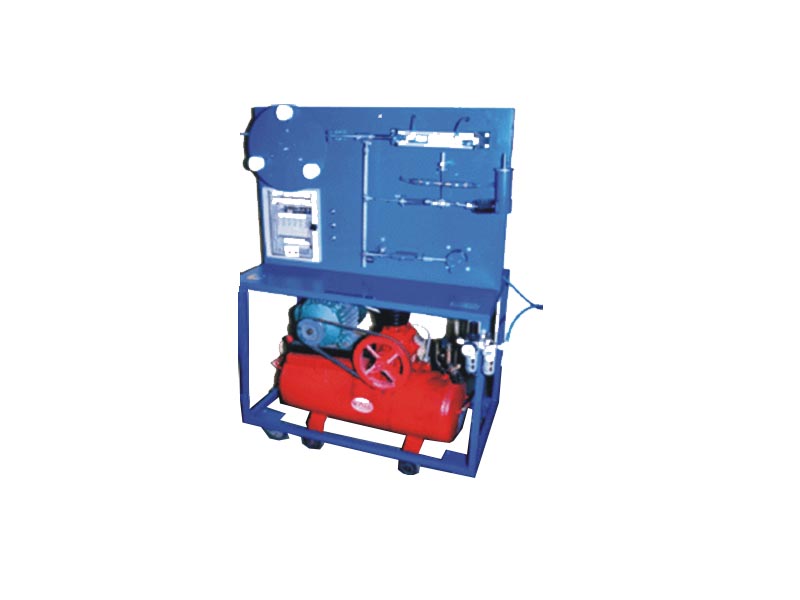

This unit is designed to support a large number of experiments that demonstrate a broad range of Pneumatic servo principles. The experiment manual takes the step by step experiments to create a learning experience that provides a complete and practical introduction to pneumatic technology. All components such as double acting cylinder, control valves are securely mounted on panel and clearly identified with a description. All components are fitted with push-to-connect fittings. Two sizes of plastic tubing are supplied to connect the components to form the circuits in the exercises.

DIMENSIONS AND WEIGHT :

Size : 1.2 m.(L)x 0.6 m(W) X 1.7m ( H )
Weight : Approx. 50 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz
Air Supply : @ 7 kg/cm2

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
