RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Calculate the Pressure drop for flow through helical coil.
TECHNICAL DESCRIPTION :

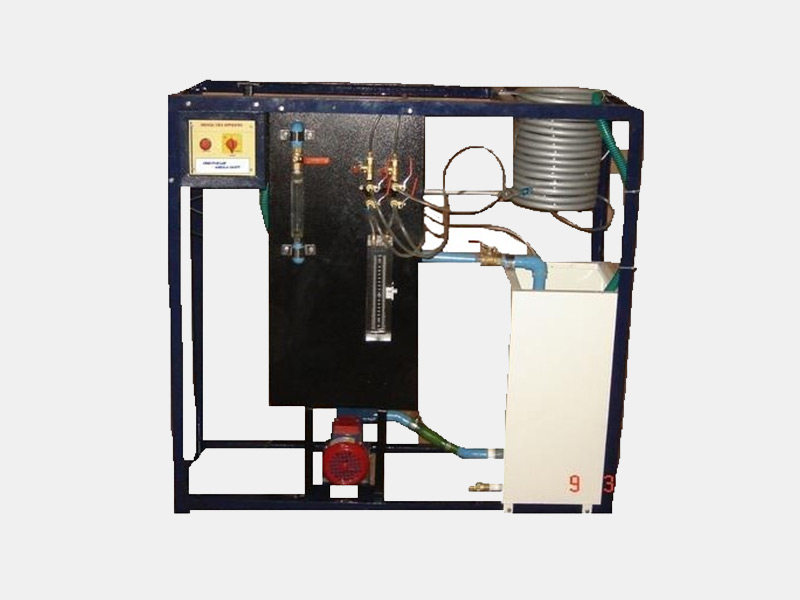

The experimental unit consist of Helical Coil section fitted on Stand .A water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve. A measuring tank is provided for measurement of discharge of water through the Section. The frictional loss across the Coil are measured by using U Tube Manometer. This system is complete closed circuit type and easy to move due to wheels.
DIMENSIONS AND WEIGHT :
SIZE : 1.5 m.(L)x 0.7 m(W) X 1.2m (H)
WEIGHT : Approx. 60 Kg
SERVICE REQUIRED :
Power Supply : 230v, AC, SinglePhase, 50HZ
Water : 80 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
