RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the performance of Torque convertor at various loads.
TECHNICAL DESCRIPTION :

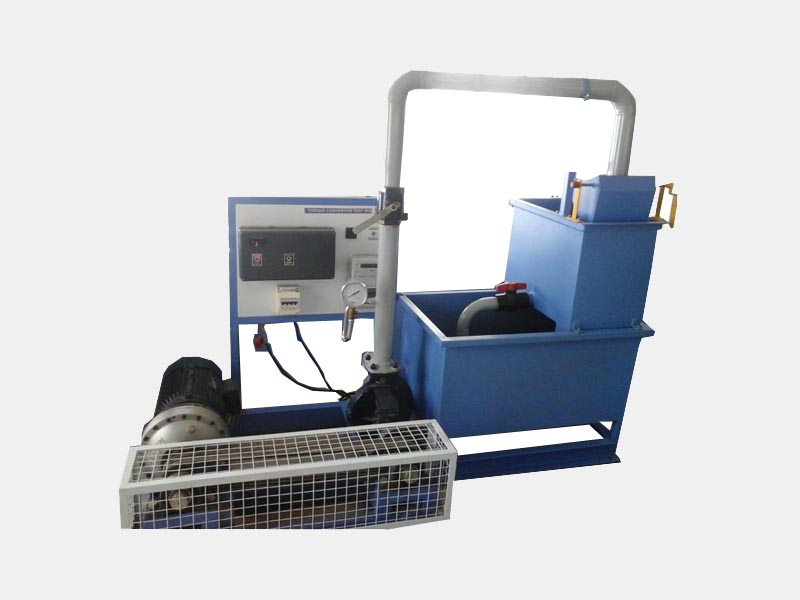

The setup consists of an ac motor coupled to the torque convertor. The output of the torque convertor is coupled to the centrifugal pump. A water supply tank with necessary piping, control valve and pressure gauges are provided. A RPM Indicator is provided for measurement of speed of torque convertor.
DIMENSIONS AND WEIGHT :
Size : 1.2 m.(L)x 1.0 m(W) X 1.5m ( H )
Weight : Approx. 100 Kg
SERVICE REQUIRED :
Power Supply : 440 v Ac Supply 50 Hz , Three Phase
Water : 100 ltrs
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
