RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the performance of Vane type hydraulic motor.
- To calculate the efficiency of Vane type hydraulic motor.
TECHNICAL DESCRIPTION :

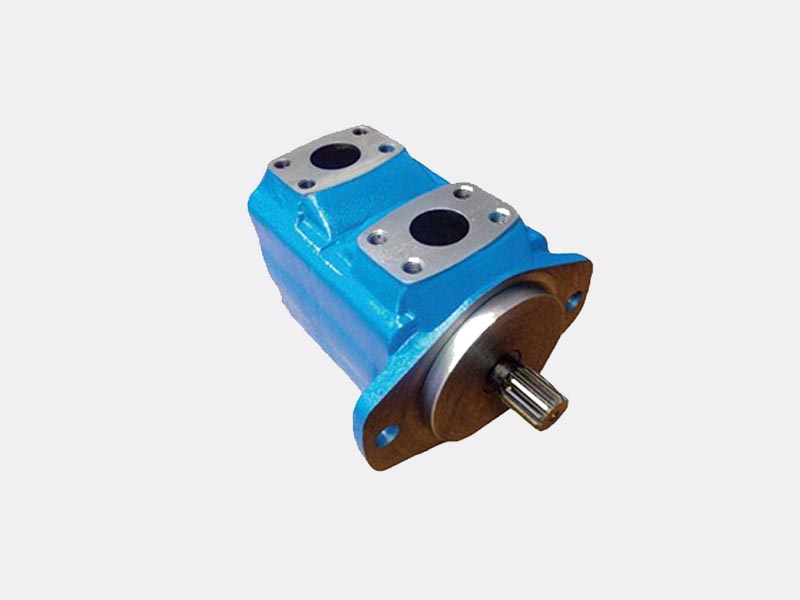

The apparatus consists of Vane type hydraulic motor driven by hydraulic power pack.Suction and discharge pressure are measured by using vacuum and pressure gauge respectively. Energy meter is provided for measurement of power consumption of pump. This system is complete closed circuit type. Rope & Weight arrangement provided to lift the weights.
DIMENSIONS AND WEIGHT :
Size : 1.0 m.(L)x 1.0 m(W) X 1.0 m ( H )
Weight : Approx. 100 Kg
SERVICE REQUIRED :
Power Supply : 440 v Ac Supply 50 Hz
Oil: 20 w 40 no, 60 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
