RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the performance of Hydraulic Dynamometer.
- To calculate the efficiency of Hydraulic Dynamometer.
TECHNICAL DESCRIPTION :

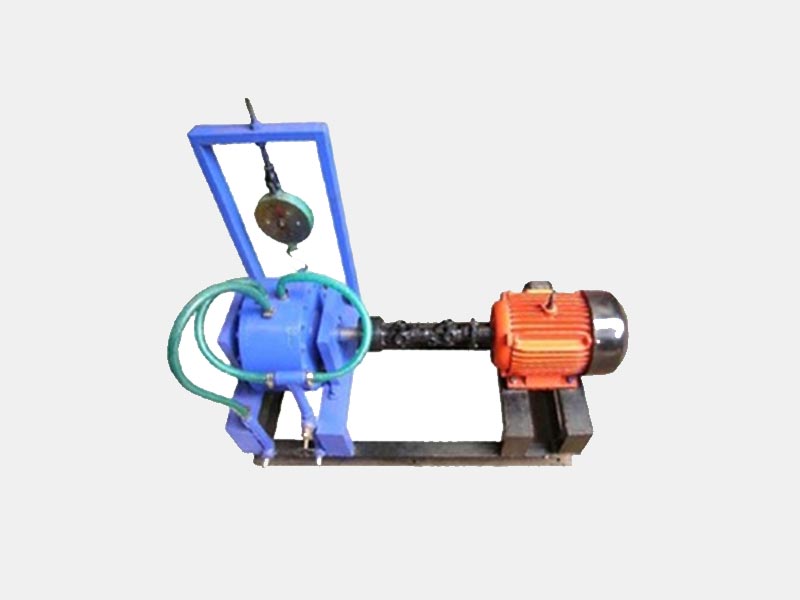

The apparatus consists of Hydraulic Dynamometer coupled to D.C Motor of suitable Capacity. A variable speed drive is provided for DC Motor. Ammeter, Voltmeter ,Energy meter is provided for measurement of power consumption .
DIMENSIONS AND WEIGHT :
Size : 1.0 m.(L)x 1.0 m(W) X 1.0 m ( H )
Weight : Approx. 100 Kg
SERVICE REQUIRED :
Power Supply : 440 v Ac Supply 50 Hz
Water Supply : @ 10 LPM
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
