RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Electrical Control of a double acting cylinder.
• Sequencing of Double acting cylinder.
• Hydraulic Logics.
• Electrical Logic Circuits.
• Control of a Single acting cylinder.
• Speed Control Circuits.
• Quick return fast approach circuits.

TECHNICAL DESCRIPTION :

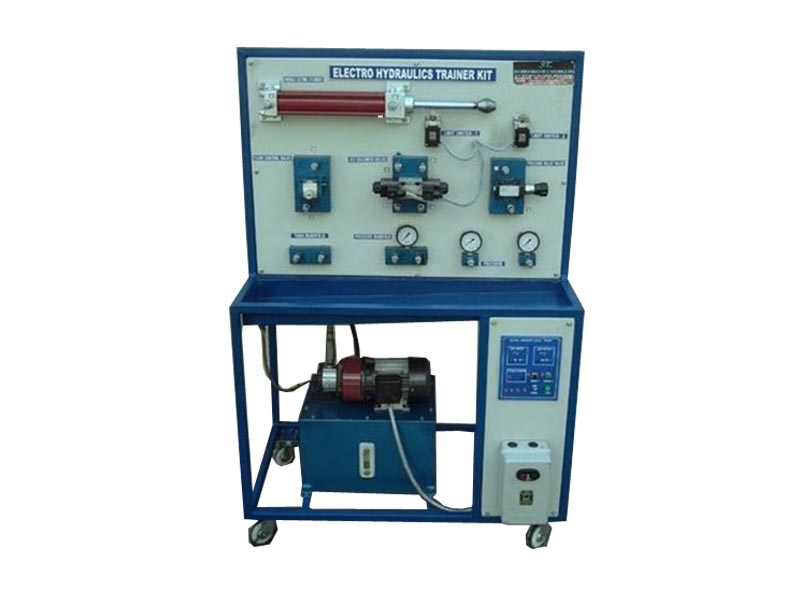

This unit is designed to support a large number of experiments that demonstrate a broad range of Hydraulic principles. The experiment manual takes the step by step experiments to create a learning experience that provides a complete and practical introduction to pneumatic technology. All components such as Single acting cylinder, double acting cylinder , different control valves are securely mounted on panel and clearly identified with a description. All components are fitted with quick disconnect nipples and the hose assemblies are fitted with quick disconnect couplings. The hose assemblies are used to connect the appropriate components to form a circuit presented in the student exercise manual. An oil tank with gear pump is fixed at the bottom of the panel for circulation of oil.

DIMENSIONS AND WEIGHT :

Size : 1.2 m.(L)x 0.6 m(W) X 1.7m ( H )
Weight : Approx. 70 Kg

SERVICE REQUIRED :

Power Supply : 440 v Ac Three Phase Supply 50 Hz
Hydraulic Oil : 60 ltrs

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
