RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Electrical Control of a double acting cylinder.
• Sequencing of Double acting cylinder.
• Pneumatic Logics.
• Electrical Logic Circuits.
• Control of a Single acting cylinder.
• Speed Control Circuits.
• Quick return fast approach circuits.
• Complex sequencing.

TECHNICAL DESCRIPTION :

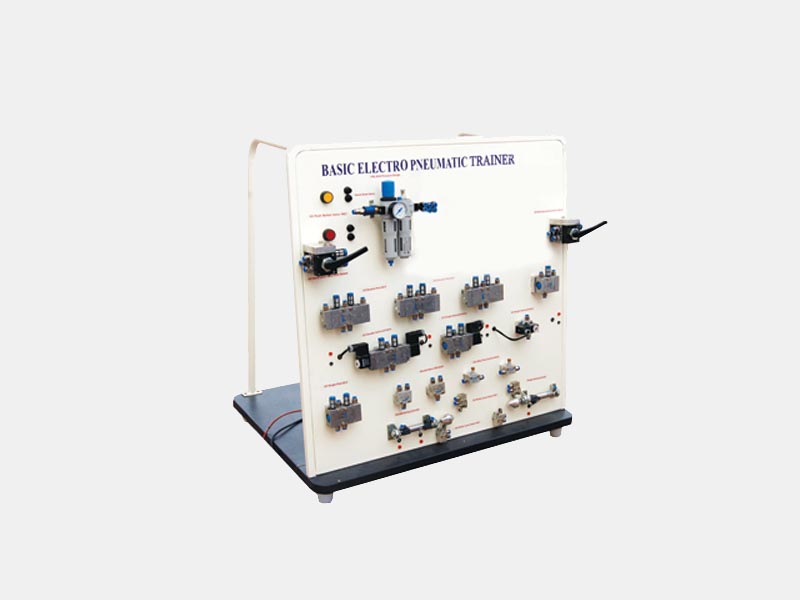

This unit is designed to support a large number of experiments that demonstrate a broad range of pneumatic principles. The experiment manual takes the step by step experiments to create a learning experience that provides a complete and practical introduction to pneumatic technology. All components such as Single acting cylinder, double acting cylinder, different control valves are securely mounted on panel and clearly identified with a description. All components are fitted with push-to-connect fittings. Two sizes of plastic tubing are supplied to connect the components to form the circuits in the exercises.

DIMENSIONS AND WEIGHT :

Size : 1.2 m.(L)x 0.6 m(W) X 1.7m ( H )
Weight : Approx. 50 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz
Air Supply : @ 7 kg/cm2

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
