RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• Plc Based Control of a double acting cylinder.
• Sequencing of Double acting cylinder.
• Pneumatic Logics.
• Electrical Logic Circuits.
• Control of a Single acting cylinder.
• Speed Control Circuits.
• Quick return fast approach circuits.
• Complex sequencing

TECHNICAL DESCRIPTION :

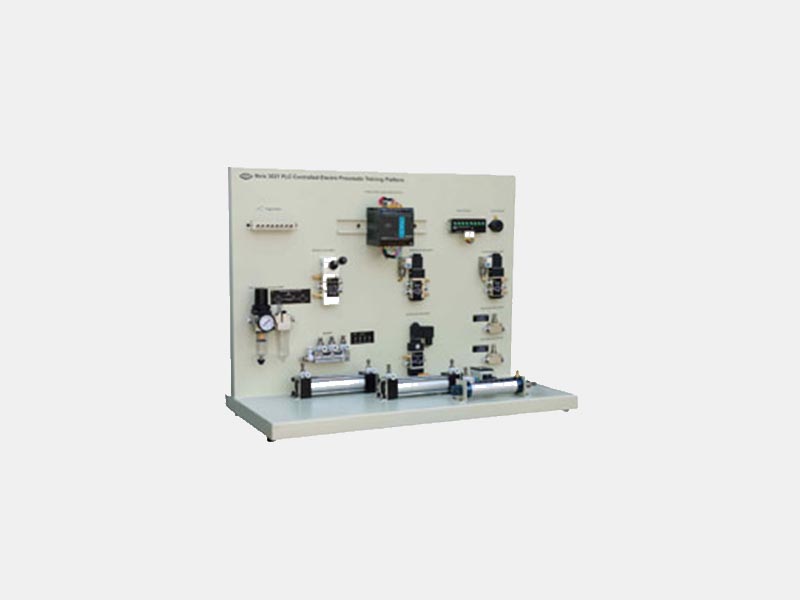

This Unit is designed to demonstrate the design, construction and application of Pneumatic components and circuits. It integrates PLC technology to build Hybrid Industrial Automation systems with Pneumatic components and modules. The experiment manual takes the step by step experiments to create a learning experience that provides a complete and practical introduction to pneumatic technology. All components such as Single acting cylinder, double acting cylinder , different control valves are securely mounted on panel and clearly identified with a description. All components are fitted with push-to-connect fittings. Two sizes of plastic tubing are supplied to connect the components to form the circuits in the exercises. This system operates on plc having 12 input and 8 output.

DIMENSIONS AND WEIGHT :

Size : 1.2 m.(L)x 0.6 m(W) X 1.7m ( H )
Weight : Approx. 50 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz
Air Supply : @ 7 kg/cm2

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
