RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To determine thermal conductivity of heat pipe.
- To observe and plot the temperature distribution along the length of the heat pipe.
- The experiments can be conducted at various values of input & calculation can be made accordingly.
- To calculate & compare effectiveness of heat pipe & other good thermal conductor pipes.
TECHNICAL DESCRIPTION :

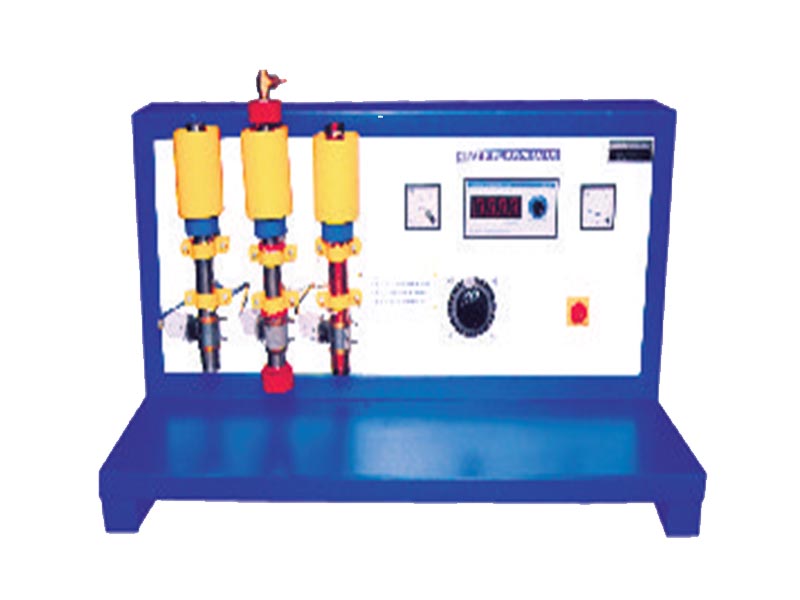

The apparatus consists of Heat pipe and other two pipes of different materials for reference. The heat pipe is a device of very high thermal conductance. It transfers heat by boiling a fluid at one end & condensing it at another .Auto transformer is provided for varying the input to the heater & measurement of input is carried out by a voltmeter, ammeter.
Thermocouples are fixed along the length of pipes, to read the temperature at the surface. The experiments can be conducted at various values of input & calculation can be made accordingly.
DIMENSIONS AND WEIGHT :
Size :1.5 m.(L)x 1.0 m(W) table top.
Weight :Approx. 70 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
