RANGE OF EXPERIMENTS TO BE CARRIED OUT:

• To determine the critical heat flux at different bath temperatures.
• To plot the graph of Critical Heat Flux with respective Bath Temperature.

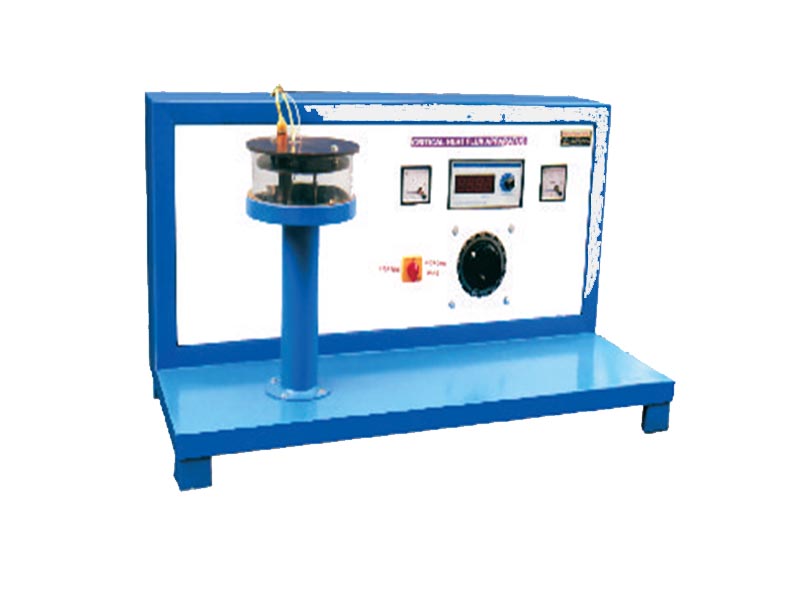

TECHNICAL DESCRIPTION :

It consists of a glass water bath with an immersed heating coil in it. Two electrodes are fixed to the lid of water bath while, the ends of these electrodes produced in to the water. A Thin Nichrome wire is connected between the ends of the electrodes. The electrodes are connected to the mains through a auto transformer . A Voltmeter and an Ammeter are provided to measure the volt and current supplied to the electrode.

DIMENSIONS AND WEIGHT :

Size :1.5 m.(L)x 1.0 m(W) X 0.7m ( H ) , Table Top
Weight :Approx. 70 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz
Water: 1 LTR

WEIGHT : 55 kg
SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual

OPTIONAL FACILITY: Data logging Facility
