RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To determine the thermal conductivityOf Liquid.
- The experiments can be conducted at various values of input & calculation can be made accordingly.
- To plot Heat flux Vs thermal conductivity of Insulating Powder.

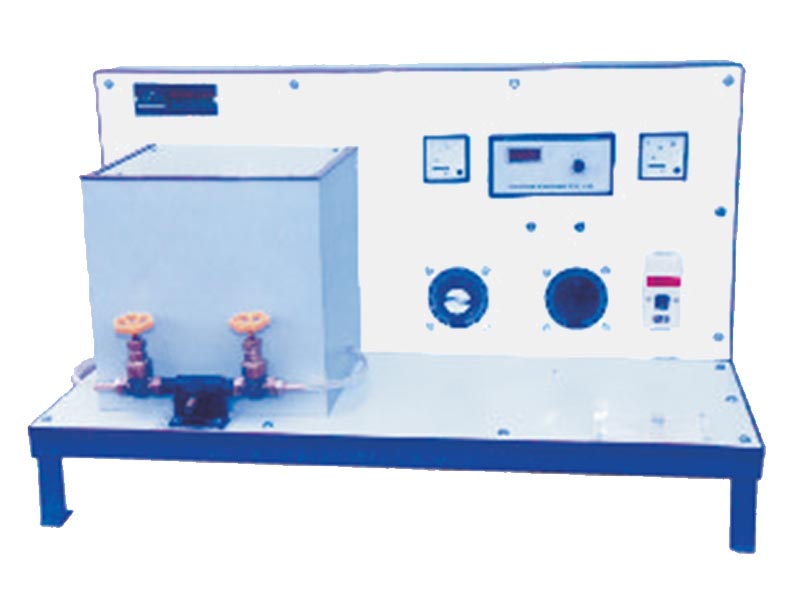

TECHNICAL DESCRIPTION :
The heater plate is surrounded by a heating ring for stabilizing the temperature of the primary heater & prevents heat loss readily around its edges. The primary & guard heater are made up of mica sheets in which is wound closely spaced Nichrome wire & packed with upper & lower mica sheets. These heaters together form flat with upper & lower copper plate & rings from the heater plate assembly. Two thermocouples are used to measure the hot face temperature at the upper & lower central heater assembly copper plates. Two more thermocouples are used to check balance in both the heater inputs. Specimens are held between the heater & cooling unit on each side of the apparatus. Thermocouples No. 5 & 6 measure the temperature of the upper cooling plate & lower cooling plate respectively. The heater plate assembly together with cooling plates & specimen hold in position by 3 vertical stands & nuts on a base plate The cooling chamber is a composite assembly of grooved aluminum casting& aluminum cover with entry & exit adapters for water inlet & outlet.
DIMENSIONS AND WEIGHT :
Size :1.5 m.(L)x 1.0 m(W) X 0.7m ( H ) , Table Top
Weight :Approx. 70 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
Water: @5 LPM
WEIGHT : 65 kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
