RANGE OF EXPERIMENTS TO BE CARRIED OUT:

• To determine Heat transferrate of heating & cooling.
• To determine the overall andindividual film heat transfer coefficients for a condensation of a vapour on a Horizontal Condenser.
• To calculate Effectiveness of the Condenser.
• The experiments can be conductedat various values of input & calculation can be made accordingly.

TECHNICAL DESCRIPTION :

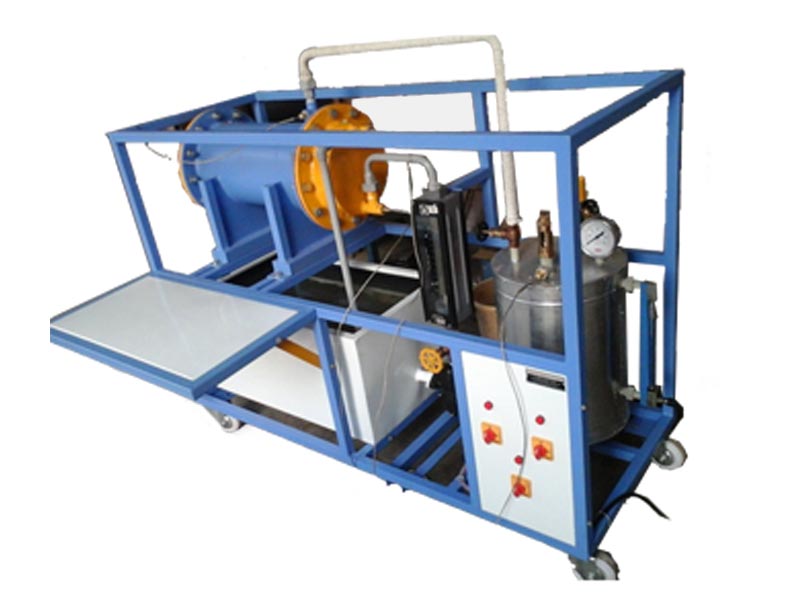

The shell and tube type horizontal condenser. Steam ( or any condensable organic vapour ) is admitted in the Shell Side. The pressure and temperature of the vapour is indicated by pressure gauge and Temperature Indicator . Condensate rate could be measured by collecting it in to a receiver in known time. The flow rate of cold water flowing through the inner pipe is known by rotameter.

DIMENSIONS AND WEIGHT :

Size :1.2 m.(L)x 1 m(W) X 2m ( H )
Weight :Approx. 110 Kg
Water: 10 lpm

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual

OPTIONAL FACILITY: Data logging Facility
