RANGE OF EXPERIMENTS TO BE CARRIED OUT:

• To Observe and Verify the Bernoullis Theorem
• To Calculate the total head over the Venturi section.
• To observe energy conversion in convergent and divergent flow.
• To Calculate the Pressure head over the Venturi section.
• To Calculate the Pressure head over the Venturi section.
• To identify the frictional loss over the Venturi section.

TECHNICAL DESCRIPTION :

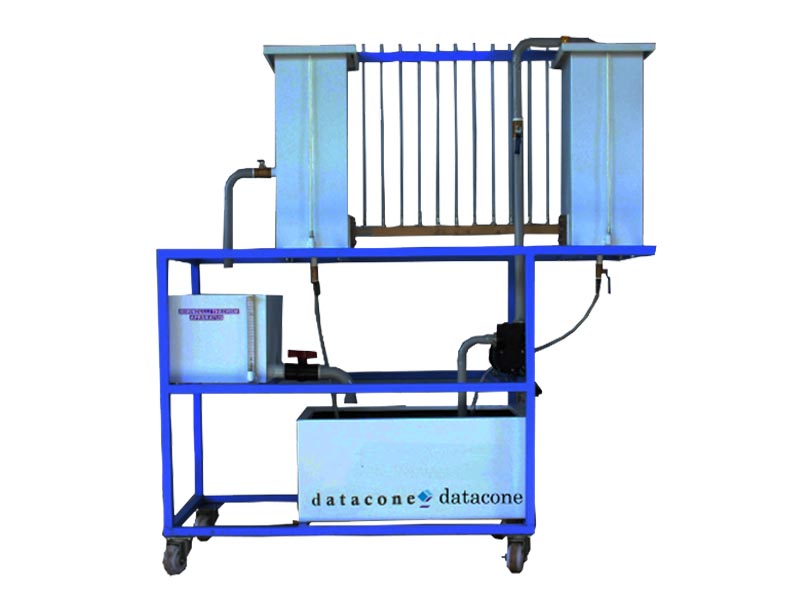

The experimental unit consists of acrylic venturi section with inlet and outlet tanks. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve. A venture section is equipped with pressure measuring points for measurement of static pressure. A measuring tank is provided for measurement of discharge of water through the Section. This system is complete closed circuit type and easy to move due to wheels.

DIMENSIONS AND WEIGHT :

Size :1.5 m.(L)x 0.7 m(W) X 1.7m ( H )
Weight :Approx. 70 Kg

SERVICE REQUIRED :

Power Supply :230v, AC, Single Phase, 50HZ
Water :120 ltr

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
