RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Calculate the Reynolds No
- To observe and study the type of flow( Laminar ,Transient , Turbulent ).
TECHNICAL DESCRIPTION :

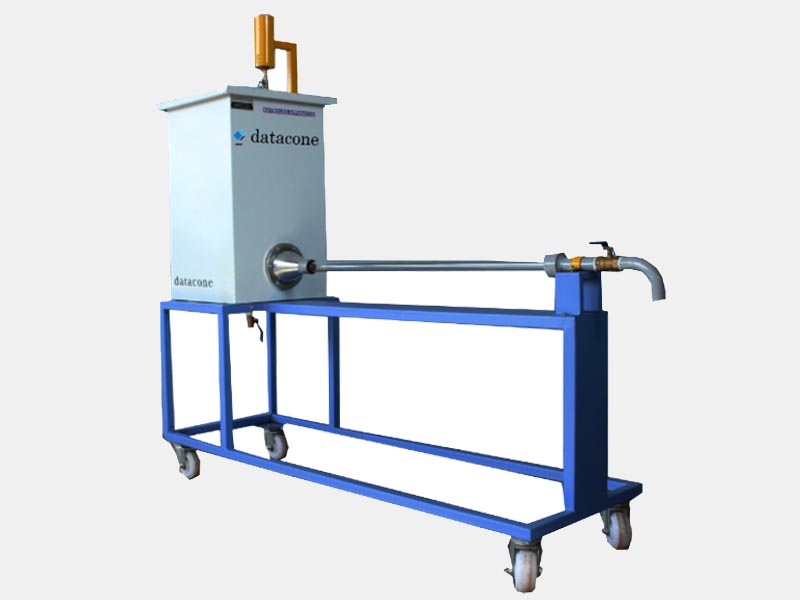

The experimental setup consists of a tank containing water & small tank containing dye. The water supply tank is fitted with horizontal transparent glass tube with flow control valve. A syringe with flexible tube from dye supply tank, fixed in the glass tube. By adjusting the flow control valve of the glass tube, types of flow can be observed. This system is complete closed circuit type and easy to move due to wheels.
DIMENSIONS AND WEIGHT :
Size :1.2 m.(L)x 0.5 m(W) X 1.7m ( H )
Weight :Approx. 45 Kg
SERVICE REQUIRED :
Water :70 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
