RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Calculate the Nozzle meter coefficient of given Nozzle meter and compare with the reported value in literature.
- To predict the flow rate by using average value of coefficient of Nozzle meter .
TECHNICAL DESCRIPTION :

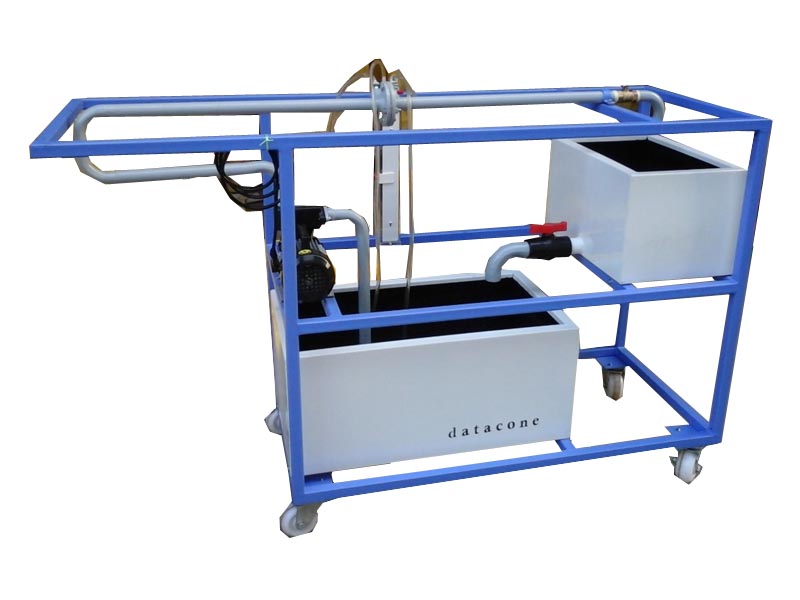

The experimental unit consists of Nozzle meter fixed in the pipe. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve. A measuring tank is provided for measurement of discharge of water through the Section. The Differential Pressure across the Nozzle meter is measured by using U tube Manometer. This system is complete closed circuit type and easy to move due to wheels.
DIMENSIONS AND WEIGHT :
Size :1.5 m.(L)x 0.7 m(W) X 1.2m ( H )
Weight :Approx. 40 Kg
SERVICE REQUIRED :
Power Supply : 230v, AC ,Single Phase , 50HZ
Water :80 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instruction Manual
